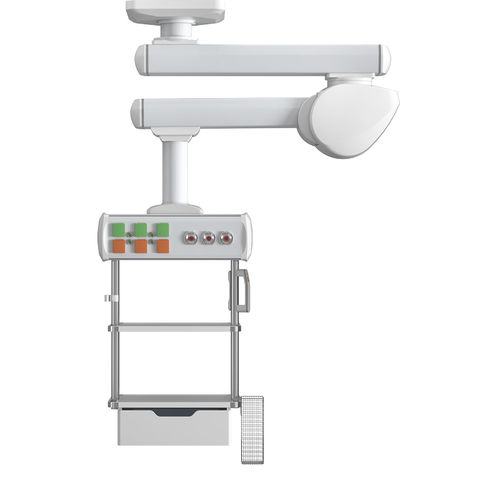

Ceiling-mounted medical pendant AInno L21

anesthesiasingle-arm

Overview
The AINNO L21 electric double-arm pendant is a ceiling-mounted medical pendant designed for intensive care units and operating rooms. It provides modular mounting for monitors, infusion devices, suction and other clinical equipment while enabling optimized room layout, cable routing and staff ergonomics.

Key features

• Dual rotating hanging arms with 340° rotation angle for flexible positioning.
• Electric height adjustment with 450 mm stroke for ergonomic equipment placement.
• Adjustable instrument platform in aluminum alloy with anti-slip recessed tabletop; available in two layers.
• Hanging tower load capacity up to 180 kg; instrument platform load capacity 80 kg.
• Integrated medical gas outlets (O2, AIR, Suction) with support for multiple international standards and adapters.
• Multiple power outlets (220V/10A) and equipotential terminals for separation and safe distribution of strong and weak currents.
• Integrated cable management in the pendant box to reduce clutter and facilitate aseptic OR setup.
• Silent drawer system with low-noise slides; optional sensor-activated drawer lighting for nighttime or low-illumination workflows.
• Telescopic extension arms compatible with infusion poles and pump stands for flexible clinical configurations.

Highlights

• Modular aluminum-alloy instrument platform to support monitors, devices and clinical accessories.
• Telescopic and rotating arms adapt equipment placement to different room layouts.
• Organized storage and silent drawers to improve clinical efficiency and accessibility.
• Comprehensive cable and power integration combining gas, strong and weak current connections.

Optional accessories

• Stainless-steel storage basket.
• Medical gas outlets and adapters for various standards (British, American, German, French, Japanese, DISS, Ohmeda, Chemetron, etc.).
• Various oxygen masks and consumables (disposable, simple, external).
• Negative-pressure regulating valve.
• External waste-liquid collection device.
• Suction tubing box for cleaner tube management.
• Drawer dividers and organizer boxes.
• Integrated lighting systems.
• Computer keyboard drawer for digital workstation integration.
• Monitor mounts and medical monitors.
• Emergency flashlight and storage box.
• Stethoscope and stethoscope holder.

Technical parameters
Model: AINNO L21
Operating power supply: AC220V, 50Hz
Input power: 6 KVA
Horizontal box length: 1000 mm
Hanging arm rotation angle: 340°
Box rotation angle: 340°
Hanging tower load-bearing capacity: 180 kg
Instrument platform load-bearing capacity: 80 kg
Height adjustment stroke: 450 mm (electric)
Protection class: IP20
Fire protection class: UL94-V1
Functional columns: 1 pc
Rotary hanging arms: 2 pcs
Damping brake system: 1 set
Medical gas (O2): 1 pc
Medical gas (Suction): 1 pc
Medical gas (AIR): 1 pc
Instrument platform: 2 layers
Power outlets (220V/10A): 6 pcs
Equipotential terminals: 4 pcs
Drawers: 1 pc
Extension arm: 1 set
Infusion stand: 1 set
Infusion pump stand: 1 pc
Boom hub: 1 pc
