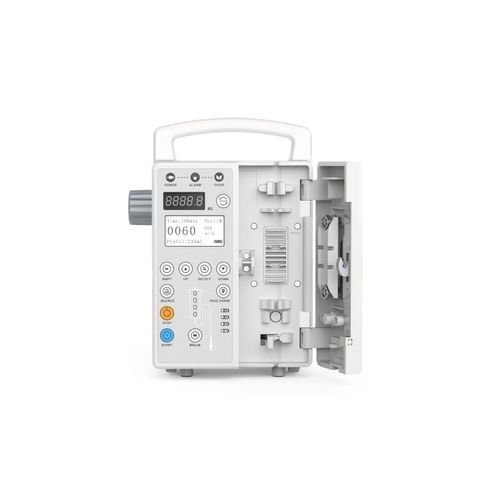

Volumetric infusion pump SK-EM215

emergencyanesthesiafor drug delivery

Overview The SK-EM215 infusion pump features a compact integrated design for accurate fluid delivery, suitable for wards, ICUs, emergency departments, operating rooms and clinical treatment areas. It provides multiple infusion modes, comprehensive alarms and battery backup to support routine clinical infusion management.

Key features

• Integrated compact ABS housing for easy cleaning and long-term clinical use
• Clear display showing infusion status, working mode, flow rate, infusion volume and alarm messages
• Multiple infusion modes: ml/h, drops/min, volume and time
• Ultrasonic bubble detection with sensitivity >25 μL
• Built-in rechargeable battery 11.1 V >1600 mAh for uninterrupted infusion during transfer or power interruption
• Stable hanger for bedside and pole mounting; practical handle for movement between departments
• Infusion line management for stable fluid delivery and convenient tubing routing
• Comprehensive alarm set: occlusion, infusion complete, door open, air bubble detection, battery low, etc.
• Accurate infusion control with mechanical accuracy within ±2%

Technical parameters (table) Product size: 153 mm (L) × 162 mm (W) × 227 mm (H), allowable error ±5%
Product weight: 17 kg
Mode selection: ml/h mode, drops/min mode, volume mode, time mode
Infusion set specification: special or standard disposable infusion set
Infusion rate range: ml/h mode 1–1200 ml/h (1 ml/h increment); drops/min mode 1–266 drops/min
Infusion rate accuracy: ml/h mode within ±5% (after calibration); drops/min mode within ±3% (after calibration)
Mechanical accuracy of infusion pumps: within ±2%
Rapid infusion rate: 100–1000 ml/h (100 ml/h steps)
KVO speed: 1–5 ml/h (1 ml/h increment)
Infusion volume: 0–9999 ml
Cumulative infusion volume: 0–9999.9 ml
Blocking alarm threshold: High 800 mmHg ±200 mmHg; Medium 500 mmHg ±100 mmHg; Low 300 mmHg ±100 mmHg
Alarm: infusion completed, pipeline blocked, door opened, air bubbles, battery low, etc.
Power supply: 220 VAC, 50 Hz; built-in battery: 11.1 V rechargeable lithium battery pack, capacity >1600 mAh; with a fully charged new battery the pump can work continuously for more than 4 hours at 25 ml/h
Bubble detector: ultrasonic detection mode, detection sensitivity >25 μL
Fuse: T2AL/250VAC ×2, installed in the pump
IP rating: IPX2 (splash-proof)
Safety class: Class I, internal power supply, CF type continuous operation equipment
Operating environment: ambient temperature +5 °C to +40 °C; relative humidity 20–90%; atmospheric pressure 86.0–106.0 kPa
Transportation and storage: ambient temperature -20 °C to +55 °C; relative humidity ≤93%

Caractéristiques / spécifications techniques

• Model: SK-EM215
• Dimensions: 153 mm (L) × 162 mm (W) × 227 mm (H), allowable error ±5%
• Weight: 17 kg
• Infusion modes: ml/h, drops/min, volume, time
• Infusion rate range: 1–1200 ml/h (ml/h mode); 1–266 drops/min (drops/min mode)
• Accuracy: ml/h mode ±5% (after calibration); drops/min mode ±3% (after calibration); mechanical accuracy ±2%
• Rapid infusion: 100–1000 ml/h (100 ml/h steps)
• KVO range: 1–5 ml/h
• Volume settings: 0–9999 ml; cumulative volume 0–9999.9 ml
• Alarms: occlusion (high/medium/low), infusion complete, door open, air bubble, battery low
• Bubble detection: ultrasonic, sensitivity >25 μL
• Power: 220 VAC, 50 Hz; internal rechargeable battery 11.1 V >1600 mAh (≥4 h at 25 ml/h)
• Fuses: T2AL/250VAC ×2
• Ingress protection: IPX2
• Safety: Class I, CF type
• Operating range: +5 °C to +40 °C; RH 20–90%; pressure 86.0–106.0 kPa
• Storage/transport: -20 °C to +55 °C; RH ≤93%
