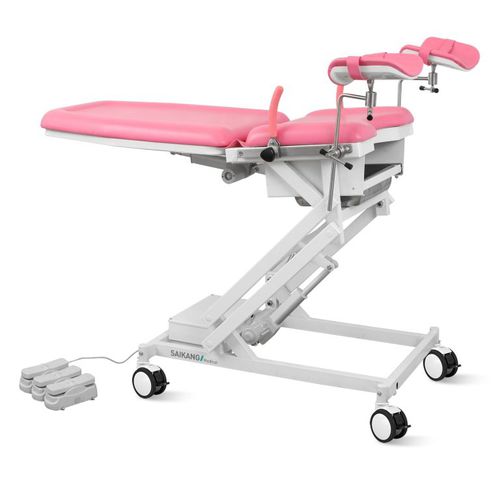

Gynecological examination couch A99-8

electricwith adjustable backrestheight-adjustable

Overview
A99-8 electric gynecological exam couch with electric height, backrest and seat adjustment, seamless foamed mattress, double leg supports, stainless steel collection basin and caster mobility with individual brakes. Intended for gynecology departments, maternity wards and women’s health clinics.

Materials

• Base and lifting system: powder-coated anti-corrosion steel, high gloss, easy to clean
• Mattress: high-density memory foam, one-piece seamless foamed construction
• Accessories: stainless steel collection/sewage basin

Main Functions & Features

• Electric adjustment: height, backrest and seat
• Back plate tilt range: up to 70° / down to 20°
• Seat board upward tilt: 40°
• Double leg supports; can function as stretcher/boat-stretcher
• Pedal remote controller for multi-action control
• Removable and movable pull handle
• Each caster equipped with individual brake for safe positioning
• Equipped with stainless steel basin and optional accessories

Motors & Controls
Famous-brand motors available for electric adjustments. Multiple motor brand options (Linak, Timotion, Dewert, Jiechang) and a pedal remote controller allow configuration to meet functional and budgetary requirements.

Parameters & Configuration
External size (L×W×H): 1400×740×610–1100 mm
Back plate up/down: 70°/20°
Seat board upward: 40°
Main voltage AC: 220V±22V, 50Hz±1Hz
Patient weight capacity: 185 kg

Standard Configuration

• Pull handle: 2 pcs
• Knee crutch/leg supports: 2 pcs
• Pedal remote controller: 1 pc
• Stainless steel basin: 1 pc
• Instruction manual: 1 pc

Additional Notes

• One-piece seamless mattress improves hygiene and simplifies cleaning
• Castors with individual brakes facilitate safe movement and locking inside clinical areas
• Hand bar and accessories designed for modularity and easy removal

Technical Specifications

• Model: A99-8
• Brand: SAIKANG MEDICAL
• External dimensions (L×W×H): 1400×740×610–1100 mm
• Back plate angle range: 70° up / 20° down
• Seat board tilt: 40° upward
• Electric supply: 220V ±22V, 50Hz ±1Hz
• Patient weight capacity: 185 kg
• Mattress: high-density memory foam, seamless foamed
• Base and adjustment system: powder-coated anti-corrosion steel
• Standard accessories: 2 pull handles, 2 knee crutches, 1 pedal remote controller, 1 stainless steel basin, 1 instruction manual
• Mobility: castors with individual brakes
• Available motor brands: Linak, Timotion, Dewert, Jiechang (options)
• Warranty: standard 1-year
