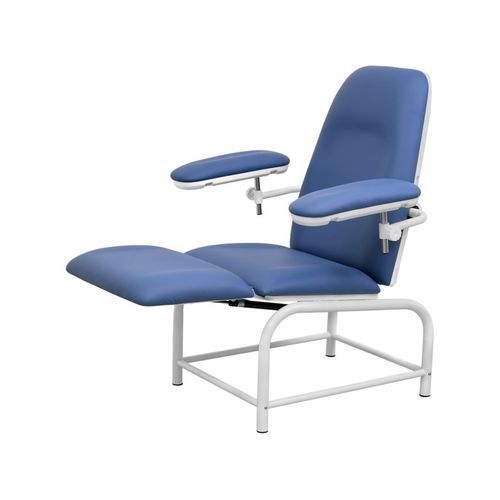

Phlebotomy blood donor chair SKE091

manualrecliningTrendelenburg

Overview
The three-section integrated blood collection chair (back plate, hip plate, leg plate) is ergonomically designed for transfusion, dialysis, infusion therapy and long‑duration treatment. It features adjustable backrest and leg rest, swivel multi‑directional armrests with front‑back and left‑right adjustment, height‑adjustable arm supports, a manual controller for multiple functions, nano anti‑fouling leather surface, sterilizable environmental plastic components and a load capacity of ≥220 kg.

Highlights

• Design — Three‑section integrated ergonomic layout (back / hip / leg) with European prototype elements for donor comfort.
• Materials & Finish — Environmental plastic sterilizable at 100°C; tensile strength up to 30 MPa. 11‑stage epoxy coating with ASTM antibacterial testing; paint thickness ~0.12 mm; brightness ~60°; impact resistance up to 50 kg.
• Back & Leg Adjustment — Independent backrest and knee/leg adjustments for smooth transition between chair and bed positions.
• Lowest Seat Height — Ergonomic lowest seat height approximately 540 mm (adjustable range 480–540 mm).
• Armrests — Upgraded armrests with 4‑directional adjustment (left‑right, front‑back) and 90° rotation; pad approx. 490×170 mm; height adjustable 0–100 mm.
• Upholstery — Nano anti‑fouling leather, seamless upholstery, comfortable touch, alcohol‑resistant and easy to clean.
• Manual Controller — Simple mechanical controller enabling donor or operator positioning of seat functions.
• Foot Pads — Anti‑slip, impact‑resistant, temperature‑resistant and noise‑reducing foot covers.

Parameters & Configuration (selected)
Size (L×W): 1750×600/940 (±10) mm
Seat Height: 480–540 (±10) mm
Seat Trendelenburg: 6° (±2°)
Back‑rest Adjustment: 0°–60° (±5°)
Knee‑rest Adjustment: 0°–84° (±5°)
Arm Pad: 490×170 (±10) mm; rotation angle: 90°
Armrest Height Adjustment: 0–100 (±10) mm
Load Capacity: ≥220 kg
Armrests: 2 pcs; Anti‑slip feet covers: 4 pcs

Applications

• Dialysis centers and renal care units
• Blood donation and transfusion areas
• Infusion therapy and long‑duration treatment environments

Technical specifications

• Model: SKE091
• Overall size: 1750×600/940 (±10) mm
• Seat height: 480–540 (±10) mm
• Seat Trendelenburg: 6° (±2°)
• Back‑rest: adjustable 0°–60° (±5°)
• Knee‑rest: adjustable 0°–84° (±5°)
• Arm pad dimension: 490×170 (±10) mm; rotation angle 90°; 2 armrests
• Armrest height adjustment: 0–100 (±10) mm
• Load capacity: ≥220 kg
• Materials: environmental plastic (sterilizable to 100°C, tensile strength up to 30 MPa), nano anti‑fouling leather upholstery
• Finish: 11‑stage epoxy coating; paint thickness ~0.12 mm; ASTM antibacterial testing
• Controls: manual controller enabling multiple seat/bed functions
• Accessories: anti‑slip feet covers (4 pcs)
