Stainless steel instrument table SKH038-2

manuel

Product overview

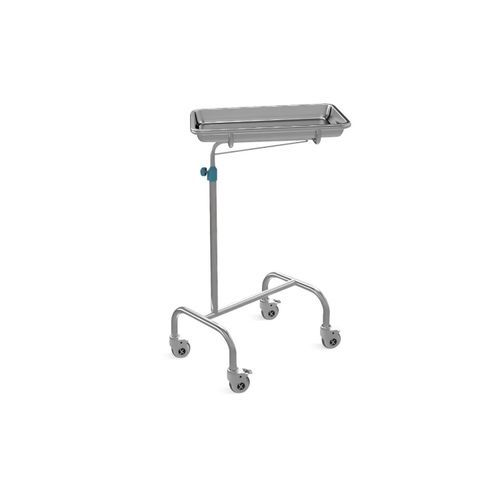

SAIKANG MEDICAL SKH038-2 Mayo trolley with adjustable height 870–1300 mm, stainless steel construction with mirror polishing, a single stainless steel instrument tray (L350×W500×H48 mm) and four 3-inch covered castors (two with brake). Designed for operating rooms, surgical suites and treatment areas.

Material

• Φ25 mm and Φ16 mm stainless steel round pipe frame
• Stainless steel with mirror surface polishing

Craftsmanship

• Robot welding for high precision, smooth surface and no burrs
• High load-bearing capacity

Tray

• Stainless steel tray, size L350×W500×H48 mm
• Tray quantity: 1 pc

Castors

• 3-inch covered castors with diagonal brake
• Flexible and easy to maneuver; smooth steering; wear-resistant; two castors with brake for secure locking
• Castor quantity: 4 pcs

Technical parameters
Size (LxWxH): 500×350×(870-1300) mm
Tray size (LxWxH): 350×500×48 mm

Technical specifications

• Model: SKH038-2
• Overall size: 500×350×(870-1300) mm
• Tray size: 350×500×48 mm
• Tray quantity: 1 pc
• Castors: 4 pcs, 3-inch covered, diagonal brake (2 with brake)
• Frame material: Φ25 mm & Φ16 mm stainless steel round pipe
• Finish: Mirror surface polishing
• Welding: Robot welding for high precision and smooth surface
• Height adjustable range: 870–1300 mm
