Medical trolley SKH048

for instrumentsfor medical devicestreatment

Overview

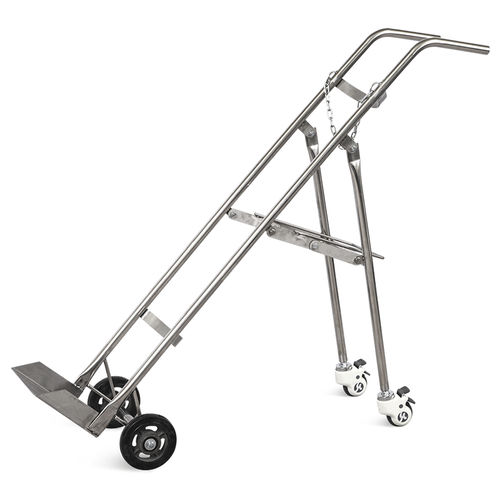

The SKH048 Oxygen Bottle Trolley from SAIKANG MEDICAL is a push-type cylinder trolley with an MS frame (mild steel) designed for safe and efficient transport of oxygen cylinders in hospitals, clinics and emergency departments. It fits 40L cylinders and features a U-shaped groove body and ergonomic pushing handle for controlled movement.

Highlights

• U-shaped groove body to match cylinder curvature for secure transport.
• Steel & welding: Baosteel supply; Panasonic robotic 360° continuous welding for consistent weld quality.
• Dimensions: 1435×360×1040 mm; compatible with 40L oxygen cylinders.
• Safety chain: 4 mm galvanized chain to secure the cylinder during movement.
• Handle: pushing handle for ergonomic control and precise positioning.
• Thickened plate: cold-rolled steel plate for compression resistance and long service life.
• Castors: two 6" TPP rubber castors and two 3" covered castors with brakes for stable, smooth mobility.

Technical parameters
Size (L×W×H): 1435×360×1040 mm

Technical configuration
6" TPP rubber castors: 2 pcs
3" covered castors with brakes: 2 pcs

Specifications

• Model: SKH048
• Product name: Oxygen Bottle Trolley
• Brand: SAIKANG MEDICAL
• Type: Push-type cylinder trolley
• Frame: MS frame (mild steel)
• Cylinder capacity: Designed for 40L oxygen cylinders
• Materials: Baosteel (steel source) and cold-rolled steel plate
• Welding process: Panasonic robotic 360° continuous welding
• Chain: 4 mm galvanized chain
• Castors: 6" TPP rubber castors (2 pcs) and 3" covered castors with brakes (2 pcs)
• Handle: Pushing handle for movement control
