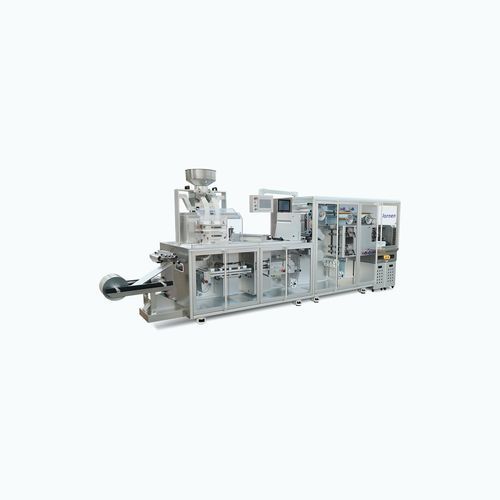

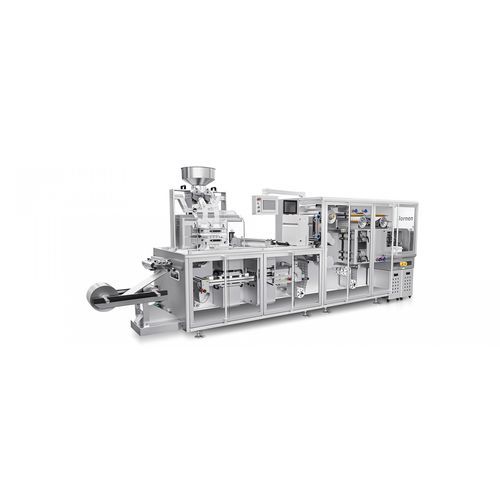

Servo-driven packaging machine BMR270
automaticcontinuousvertical

servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
servo-driven packaging machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic, continuous, servo-driven
Type
rotary, vertical
Configuration
table
Product applications
solids, for capsules, tablet
Container type
blister, for vials, for ampoules, syringe
Application domain
for the pharmaceutical industry, medical industry, for the cosmetics industry
Other characteristics
high-performance, high-speed
Options
sealing, with touchscreen, with cartoner module
Production capacity

Max.: 200 p/min

Min.: 20 p/min

Weight

3,000 kg
(6,613.9 lb)

Length

Max.: 5,600 mm
(220.47 in)

Min.: 4,000 mm
(157.48 in)

Width

1,200 mm
(47.24 in)

Height

2,200 mm
(86.61 in)

Description

> The high-speed Blister Packaging Machine is fully servo-regulated, culminating in more than 30 years of professional experience. > The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front). > GMP-compliant cantilever (balcony type) layout for easy, pharmaceutically compliant cleaning. > Accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allows production to run uninterrupted for approximately 90 minutes, reducing the material replacement frequency. > Equipped with integrated forming material splicer to enhance efficiency during material replacement. > The upper and lower plates adopt a contact heating method that significantly reduces the forming temperature. Thus, shrinkage, deformation of packaging material, and power consumption are minimized. > It is Equipped with format locking, a positioning system, and a quick-fitting, tool-free design, achieving extremely straightforward format changeover. > The larger area of the forming station, rotary sealing station, and high-speed embossing and punching station makes it suitable for mass batch production. > In the sealing station, when the machine stops, the sealing roller rises automatically to prevent hot air from entering the blister pockets, preserving medicine effectiveness. > Using a quick-fitting design enables the replacement of lidding material easily within 10 seconds. > Equipped with an integrated lidding material splicer to enhance efficiency during material replacement. > It adopts a transverse cutter that easily collects its blister card and rejects faulty blisters.
