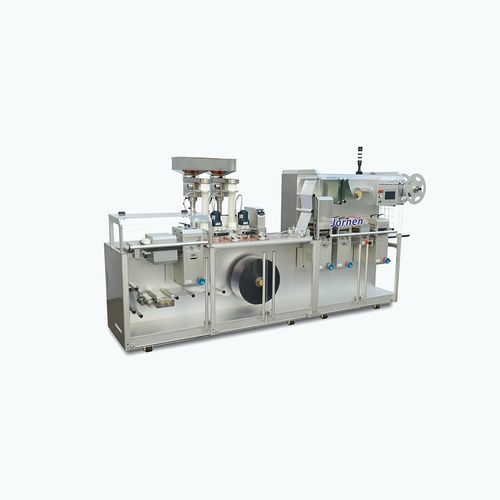

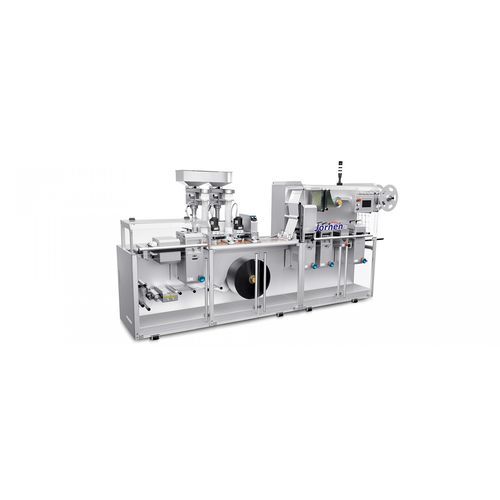

Automatic packing machine BMP180
verticalcompactfor medicine

automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
vertical
Configuration
compact
Product applications
for medicine
Container type
blister
Application domain
for the pharmaceutical industry, medical industry
Other characteristics
high-speed
Options
sealing
Production capacity

40 p/min

Weight

900 kg
(1,984.2 lb)

Length

3,650 mm
(143.7 in)

Width

800 mm
(31.5 in)

Height

1,900 mm
(74.8 in)

Description

· BMP180 is compact and suitable for the blister packaging of capsules, tablets, pills, etc., for small batch production. · Extremely straightforward format changeover. · The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front). . GMP-compliant cantilever (balcony type) layout for easy, pharmaceutically compliant cleaning. . Adopts digital position indicator achieves straightforward adjustment. · Sealing pressure adopts the gas-hydraulic pressure cylinder, so the pressure can be set freely according to the sealing area (commonly, a larger sealing area requires higher pressure. · The blister length can be set freely through the Touch Screen User Interface, which reduces the time for a format changeover. · The blister length can be set free through the Touch Screen User Interface, which reduces the time for a format changeover. · The upper and lower plates adopt a contact heating method that significantly reduces the forming temperature. Thus, the shrinkage, deforming of packaging material, and power consumption are minimized. · Using a fast lock method enables the replacement of lidding material easily within 10 seconds. · It is suitable for plastic thermoforming and aluminum cold-forming blister packaging. Main Technical Parameters Max. Output: 150 blisters/min. (alu/pvc blister size 57× 80mm) Max. Forming Area: 170×120mm Max Forming Depth: 15mm Material: Max. width 180mm Machine Power: 8.5kw
