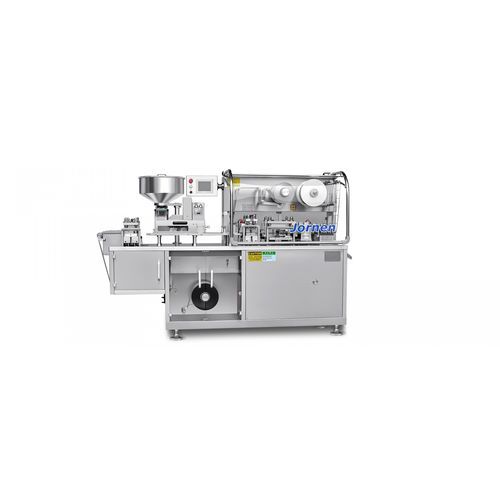

Pressure thermoformer DPP150K

servo-drivenlaboratoryfor pharmaceuticals packaging

Overview
The DPP150K is a top-bottom blister packaging machine designed for small-batch pharmaceutical production. It features a compact footprint and a straightforward control layout to reduce changeover and setup time.

Key features

• Top-bottom platen sealing suitable for complex product shapes
• Adjustable sealing pressure via gas-hydraulic cylinder for precise control
• User-friendly HMI with touch-screen index length adjustment
• Fast-lock lidding replacement — lidding change in under 10 seconds
• Tool-less format parts for quick changeovers and reduced downtime
• Universal feeder for capsules, flat and oblong tablets
• Contact heating to minimize shrinkage and reduce energy consumption
• Servo indexing for accurate registration and repeatability

Main technical parameters
Max. punching speed: 50 punches/min.
Max. output: 100 blisters/min. (blister size 57×80 mm)
Max. forming area: 135×120 mm
Material max. width: 150 mm
Machine power: 4.7 kW
Machine dimensions: 2400×600×1700 mm
Machine weight: 800 kg

Applications

• Pharmaceutical R&D and pilot production
• Clinical trial packaging and small-batch production
• Stability studies, sample and marketing sample packaging
• Packaging development and small-scale manufacturing
