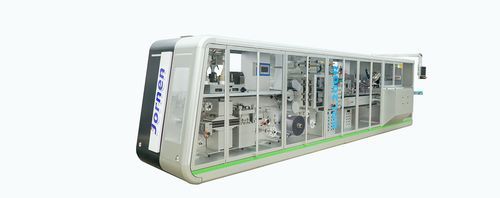

Servo-driven cartoner BPL200R

continuousin-linecompact

Product overview
The BPL200R is an integrated blister-to-carton packaging line designed for pharmaceutical manufacturers requiring high flexibility in limited space. With a compact overall length of approximately 7 m, the line supports multi-variant, small-batch production while maintaining continuous, servo-controlled operation.

Key features

• Ultra-compact integration: Complete blister and cartoning line packaged within a ~7 m footprint for facilities with restricted floor space.
• Small-batch agility: Designed for frequent format changes and multiple product variants typical of modern pharma production.
• Tool-less, rapid changeover: Format changes without tools and digital position indicators reduce downtime and speed setup.
• Precision blister transfer: Suction-arm transfer moves blister cards directly from punch station to carton magazine with gentle, accurate handling.
• Servo-driven indexing: Precise servo motors ensure stable, repeatable indexing for consistent product positioning.
• Flexible leaflet handling and closures: Supports 1–4 folds for leaflets and offers standard tuck-in or optional hot-melt closure according to packaging requirements.
• Operator safety and ergonomics: Ergonomic sliding doors provide safe access for cleaning and maintenance.

Main technical parameters
Max. output: 200 cartons/min.
Carton size range: Max. 150 x 115 x 50 mm; Min. 75 x 30 x 15 mm
Installed power: 24 kW
Machine dimensions (L×W×H): 7400 × 1700 × 2050 mm
Machine weight: 5800 kg

Technical specifications

• Model / Series: BPL200R
• Overall integrated line length: ≈ 7 m (compact footprint)
• Maximum output capacity: 200 cartons/min
• Carton size range: max. 150 × 115 × 50 mm; min. 75 × 30 × 15 mm
• Installed machine power: 24 kW
• Machine footprint / dimensions: 7400 × 1700 × 2050 mm
• Machine weight: 5800 kg
• Blister transfer: precision suction-arm transfer from punch station to carton magazine
• Control: servo-driven indexing system for stable and accurate operation
• Changeover: tool-less format changes with digital position indicators
• Leaflet handling: supports 1 to 4 folds
• Closure options: standard tuck-in and optional hot-melt closure
• Operator safety: ergonomic sliding door for safe access and easy cleaning
