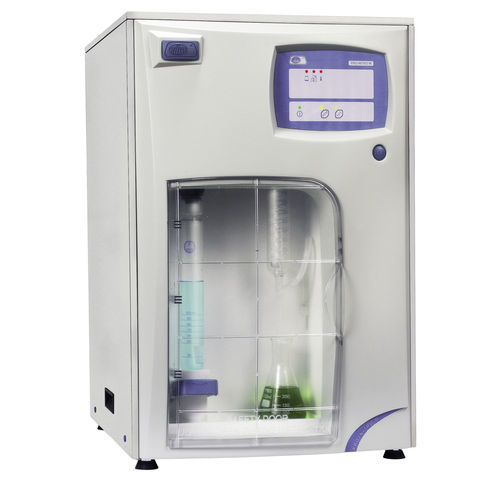

Automatic distillation system Pro-Nitro M

Kjeldahl

Steam distillation unit. Compact steam generator with overtemperature safety thermostat and overpressure protection switch. Safety door prevents distillation with the door open. Digestion/distillation tube presence detection. Universal adapter for MACRO (Ø 42 mm) and MICRO (Ø 26 mm) digestion/distillation tubes. Space-saving in the laboratory: The H2O and NaOH tanks are housed inside the unit. Stainless steel frame and ABS plastic front panel. Low water indicator light Safety door open or tube missing indicator light Overtemperature indicator light Power supply connection indicator light Distillation stop/start button and indicator light NaOH volume selection Dimensions (H/W/D) : 75/50/50 cm Weight : 30 kg Power consumption : 1800 W Includes : A 42 mm diameter MACRO digestion tube A set of hoses A set of tanks Alarms Lack of water in the steam generator Open safety door or no digestion/distillation tube Overtemperature in the steam generator Automatisms Closing and opening of the cooling water together with the distillation Dosing of NaOH once the distillation has started Selection of the NaOH volume Stopping the distillation after the programmed time has elapsed Applications Suitable for a laboratory with a small to medium sample volume Teaching centers Measuring range 0.2 to 200 mg of Kjeldahl Nitrogen Distillation rate 35 to 40 ml/minute Distillation time Programmable Nitrogen recovery 99.5% NaOH tank capacity 2 liters Cooling water consumption 80 to 100 liters/h Typical distillation duration 7 to 10 minutes Steam generator water consumption 2.5 liters/h Steam generator water tank capacity 6 liters
