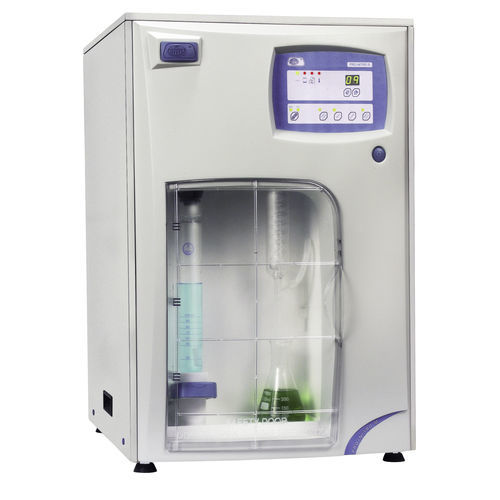

Semi-automatic distillation system Pro-Nitro S

Kjeldahl

Steam distillation unit. Compact steam generator with overtemperature safety thermostat and overpressure protection switch. Safety door prevents distillation with the door open. Digestion/distillation tube presence detection. This device prevents NaOH dosing if the tube is not present. Universal adapter for MACRO (Ø 42 mm) and MICRO (Ø 26 mm) digestion/distillation tubes. Space-saving in the laboratory: The H2O, NaOH, and H3BO3 tanks are housed inside the unit. Digestion/distillation tube emptying system. Stainless steel frame and ABS plastic front panel. Panel 1. Steam generator indicator light. 2. Low water indicator light in the steam generator water tank. 3. Safety door open or tube missing indicator light. 4. Overtemperature indicator light. 5. Buttons and display for parameter selection. 6. Manual or Automatic mode selection. 7. Button for dosing boric acid / START button in automatic mode. 8. Button for dosing NaOH. 9. Button to start distillation in manual mode. 10. Button to stop and empty the sample. alarms Lack of water in the steam generator, Safety door open or without digestion/distillation tube, Overtemperature in the steam generator Display 2-digit green LED Accessories To perform a complete Kjeldahl nitrogen analysis, this distiller must be completed with digestion equipment Automatisms A single push button to run the complete distillation cycle: Boric acid dosage Start of distillation NaOH dosage Distillation stop (after the programmed time has elapsed) Acoustic indication of the end of the cycle Measuring range 0.1 to 200 mg Nitrogen Distillation time Programmable Nitrogen recovery 99.5%
