Veterinary forceps JZ-A-23-1600

biopsydisposable

Product Features

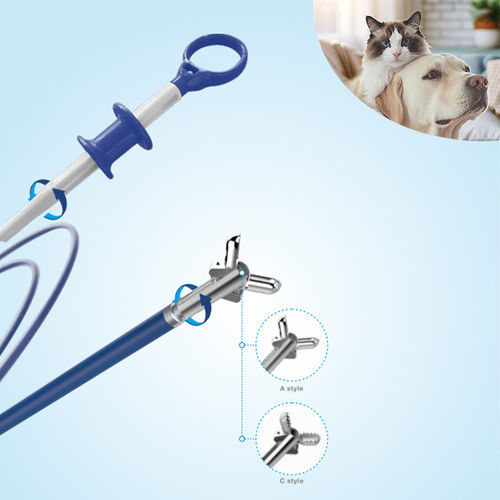

• Disposable biopsy forceps with 360° synchronous rotation for multi-angle sampling
• Inner-axis rotation mechanism to reduce endoscope loss
• High-grade manufacturing ensuring sharpness, fit and reliable bite force

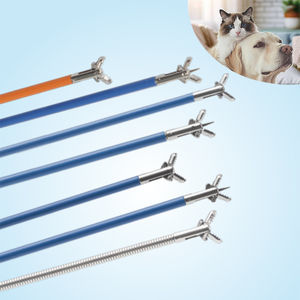

• Accurate sampling from any angle; models available for gastroscope, enteroscope and bronchoscope; coated and uncoated options

Product Advantages

• Continuous opening/closing with 360° rotation enables flexible access to lesions at difficult angles and precise tissue grasping
• Inner-axis rotation reduces risk of endoscope/mirror loss during manipulation
• Design and manufacturing meet industry first-class standards for operability and sample quality

Expert Evaluation

• Necessity: 360° rotation allows adjustment of forceps angle to obtain accurate biopsies when angle or position is challenging
• Feasibility: Angle adjustment simplifies maneuvers, shortens procedure time and increases biopsy efficiency
• Precise sampling: Facilitates access to anatomically difficult areas (eg posterior gastric wall), improving diagnostic yield and treatment planning

Model Number Table
Model Number Diameter (mm) Length (mm) Forceps channel (mm) Features
JZ-A-23-1600 2.3 1600 ≤2.8 Gastroscope, uncoated
JZ-A-23-1900 2.3 1900 ≤2.8 Gastroscope, uncoated
JZ-A-23-2300 2.3 2300 ≤2.8 Enteroscope, uncoated
JZ-C-23-1600 2.3 1600 ≤2.8 Gastroscope, uncoated
JZ-C-23-1900 2.3 1900 ≤2.8 Enteroscope, uncoated
JZ-C-23-2300 2.3 2300 ≤2.8 Enteroscope, uncoated
JZ-A-18-1000 1.8 1000 ≤2.8 Bronchoscope, uncoated
JZ-A-18-1200 1.8 1200 ≤2.8 Bronchoscope, uncoated
JZ-A-18-1600 1.8 1600 ≤2.8 Superfine gastroscope, uncoated
JZ-C-18-1000 1.8 1000 ≤2.8 Bronchoscope, coated
JZ-C-18-1200 1.8 1200 ≤2.8 Bronchoscope, coated
JZ-C-18-1600 1.8 1600 ≤2.8 Superfine gastroscope, coated

Technical specifications

• Rotation: 360° synchronous rotatable biopsy head for multi-angle sampling
• Axis: Inner-axis rotation to reduce endoscope/mirror loss
• Manufacturing: High-level sharpness, fit, bite force and operability per industry first-class standard
• Intended use: Endoscopic biopsy sampling with precise grasping from various angles
• Available diameters: 2.3 mm and 1.8 mm
• Available lengths: 1000 mm, 1200 mm, 1600 mm, 1900 mm, 2300 mm
• Forceps channel compatibility: ≤2.8 mm
• Variants/features: Gastroscope/Enteroscope/Bronchoscope compatible models; coated and uncoated options; superfine gastroscope compatible variants
