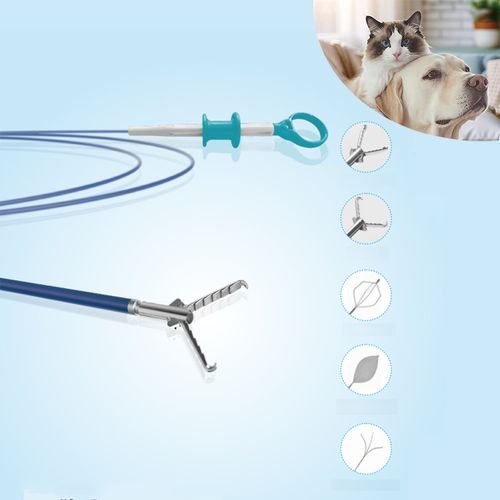

Veterinary forceps JZ-A-2312-11
foreign body removaltoothed

Veterinary forceps - JZ-A-2312-11  - JZ Biotech - foreign body removal / toothed
Veterinary forceps - JZ-A-2312-11  - JZ Biotech - foreign body removal / toothed
Veterinary forceps - JZ-A-2312-11  - JZ Biotech - foreign body removal / toothed - image - 2
Veterinary forceps - JZ-A-2312-11  - JZ Biotech - foreign body removal / toothed - image - 3
Veterinary forceps - JZ-A-2312-11  - JZ Biotech - foreign body removal / toothed - image - 4
Veterinary forceps - JZ-A-2312-11  - JZ Biotech - foreign body removal / toothed - image - 5
Veterinary forceps - JZ-A-2312-11  - JZ Biotech - foreign body removal / toothed - image - 6
Add to favorites
Compare this product
Go to the JZ Biotech website for more information

Characteristics

Applications
veterinary
Procedure
foreign body removal
Options
toothed
Total length

120 cm, 160 cm, 180 cm, 200 cm, 230 cm
(47.2 in, 63 in, 70.9 in, 78.7 in, 90.6 in)

Description

Intended Use
Removal of foreign tissues from the digestive tract using an endoscope.

Product Features
  • Adequate opening width of the jaws to grasp large-volume foreign tissues.
  • Ergonomic handle design: operate the clamp head with one hand.
  • Multiple clamp-head configurations to meet different surgical needs.

Available models
  • JZ-A-2312-11 — Diameter: 2.3 mm; Length: 1200 mm; Working channel: 2.8 mm; Open width: 11 mm; Characteristics: Alligator teeth
  • JZ-A-2316-12 — Diameter: 2.3 mm; Length: 1600 mm; Working channel: 2.8 mm; Open width: 12 mm; Characteristics: Alligator teeth
  • JZ-A-2318-18 — Diameter: 2.3 mm; Length: 1800 mm; Working channel: 2.8 mm; Open width: 18 mm; Characteristics: Alligator teeth
  • JZ-B-2420-15 — Diameter: 2.4 mm; Length: 2000 mm; Working channel: 2.8 mm; Open width: 15 mm; Characteristics: Basket type
  • JZ-B-2423-25 — Diameter: 2.4 mm; Length: 2300 mm; Working channel: 2.8 mm; Open width: 25 mm; Characteristics: Basket type
  • JZ-C-2418-20 — Diameter: 2.4 mm; Length: 1800 mm; Working channel: 2.8 mm; Open width: 20 mm; Characteristics: Claw type
  • JZ-C-2423-30 — Diameter: 2.4 mm; Length: 2300 mm; Working channel: 2.8 mm; Open width: 30 mm; Characteristics: Claw type
  • JZ-D-2416-25 — Diameter: 2.4 mm; Length: 1600 mm; Working channel: 2.8 mm; Open width: 25 mm; Characteristics: Loop type
  • JZ-D-2423-30 — Diameter: 2.4 mm; Length: 2300 mm; Working channel: 2.8 mm; Open width: 30 mm; Characteristics: Loop type
  • JZ-E-2418-25 — Diameter: 2.4 mm; Length: 1800 mm; Working channel: 2.8 mm; Open width: 25 mm; Characteristics: Net pocket type
  • JZ-E-2423-30 — Diameter: 2.4 mm; Length: 2300 mm; Working channel: 2.8 mm; Open width: 30 mm; Characteristics: Net pocket type

Technical specifications
  • Product family: Veterinary foreign body forceps
  • Models and main dimensions: see model list above (Model; Diameter (mm); Length (mm); Working channel (mm); Open width (mm); Characteristics)
  • Diameter range: 2.3 mm – 2.4 mm
  • Length range: 1200 mm – 2300 mm
  • Working channel (Through): 2.8 mm
  • Open width range: 11 mm – 30 mm
  • Available clamp head types: Alligator teeth, Basket type, Claw type, Loop type, Net pocket type
