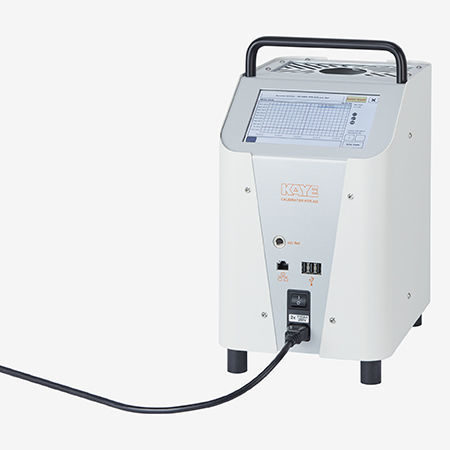

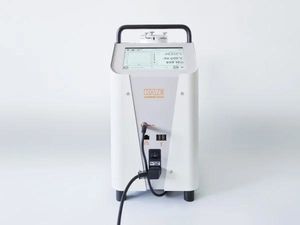

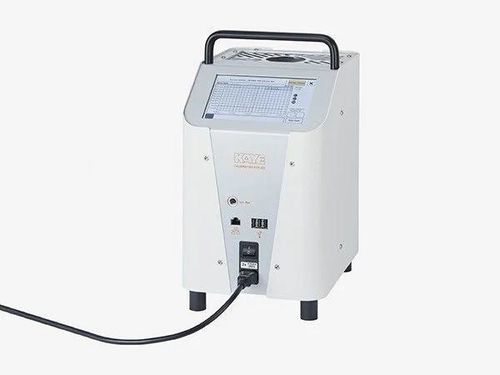

Temperature calibrator HTR-420

dry blockhigh temperaturefor ovens

Description
The Kaye HTR-420 high-temperature dry block calibrator provides precision calibration for industrial and laboratory thermal validation up to 420°C. It supports simultaneous calibration of up to 48 thermocouples using a dedicated 48-TC fixture that ensures secure full immersion. The unit integrates with Kaye software (Validator 2000, Validator AVS, ValProbe, RF ValProbe) for automated or manual procedures and can be operated standalone via a 7" color touchscreen.

Key features

• Operating range: 30°C to 420°C; stability ±0.010°C; uniformity 0.1°C
• Fast heating and cooling performance
• Simultaneous calibration for up to 48 thermocouples with dedicated dry block inserts
• Inserts compatible with thermocouples, IRTD, ValProbe flexible/bendable and RF ValProbe probes
• Software interface for Kaye products (Validator 2000, Validator AVS, ValProbe, RF ValProbe) for automatic/manual calibrations
• 7" color touchscreen for local control
• Universal power supply 100–240 VAC, 50/60 Hz
• Optional inserts available for specialty or process probes

Applications
Designed for laboratories and industrial thermal validation tasks that require high-temperature calibration capacity and repeatable results. Typical uses include calibration of sensors for autoclaves, sterilizers, ovens, hot-air tunnels, fermenters and other high-temperature process equipment.

Specifications

• Model: HTR-420
• Control sensor: External
• Temperature range*: 30°C to 420°C (86°F to 788°F)
• Accuracy: ±0.1°C (±0.18°F)
• Stability: ±0.010°C (±0.018°F)
• Uniformity: 0.1°C (0.18°F)
• Heating / cooling times: 30°C→100°C in 7 min; 30°C→350°C in 20 min; 350°C→125°C in 20 min; 350°C→50°C in 40 min
• Block dimensions: Ø 60 mm × depth 170 mm
• Capacity: up to 48 thermocouples (with 48-TC fixture)
• Display: 7" color touchscreen; resolution 0.1 / 0.01 / 0.001 - °C / °F / K
• Interfaces: Serial to Validator, Ethernet, 3× USB
• Dimensions: 215 × 290 × 345 mm
• Weight: ~11 kg (24 lbs)
• Power: 100–240 VAC, 50/60 Hz; max. 1000 W
• Additional inserts available for specialty/process probes
• *ambient temperature 20°C (68°F)
