Calibration calibration bath CTR-40

heatingcoolingcompact

Description

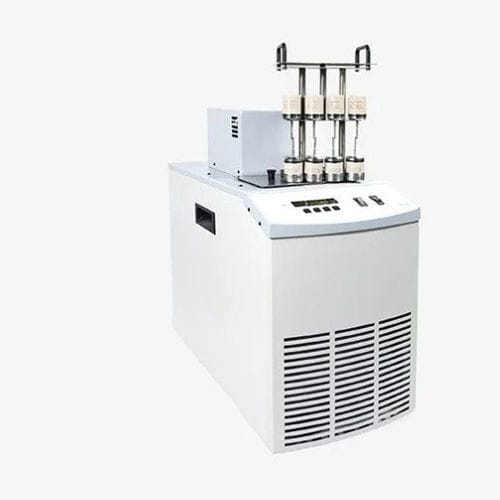

The CTR-40 is a portable temperature calibration bath designed for calibration and validation of the Kaye ValProbe RT system. Used with the IRTD probe and ValProbe RT software, the CTR-40 supports pre- and post-calibration/verification of ValProbe temperature sensors. The unit delivers high temperature uniformity and stability across a wide operating range from -40°C to 150°C and includes a 9.2 L tank with a dedicated immersion basket for ValProbe loggers to streamline laboratory workflows.

Key features

• 9.2 L tank and immersion basket accommodating up to 10 ValProbe RT loggers (tank supports up to 16 rigid ValProbe RT loggers or up to 20 freeze-dryer style loggers)
• Temperature range: -40°C to 150°C
• Temperature stability: ±0.005°C at -40°C (ethanol); ±0.005°C at 25°C (water); ±0.007°C at 150°C (oil)
• Temperature display resolution: 0.01°C
• Typical heat-up time: 25°C to 150°C in 60 minutes; typical cool-down time: 25°C to -40°C in 110 minutes
• Automates calibration when used with Kaye hardware and software
• Quiet operation and compact footprint for laboratory environments

Applications

• Autoclave and steam sterilizers
• Washer-disinfectors
• Fermenters and bioreactors
• Steam-in-place (SIP) systems
• Freezers, refrigerators and cold rooms
• Stability chambers and incubators
• Warehouse temperature mapping
• Glove boxes and controlled-environment enclosures

Specifications
Temperature range: -40°C to 150°C
Temperature stability: ±0.005°C at -40°C (ethanol); ±0.005°C at 25°C (water); ±0.007°C at 150°C (oil)
Temperature resolution: 0.01°C
Tank volume: 9.2 L
Access opening / well: 172 mm x 94 mm (6.8” x 3.7”)
Typical heat-up time (25°C to 150°C): 60 min
Typical cool-down time (25°C to -40°C): 110 min
Dimensions (H x W x D): 584 mm x 305 mm x 622 mm
Power: 115V 60 Hz or 230V 50 Hz; approx. 1,400 W
Maximum loggers supported: up to 16 rigid ValProbe RT loggers; up to 20 freeze-dryer loggers

Technical specifications

• Model: CTR-40
• Brand: KAYE
• Temperature range: -40°C to 150°C
• Temperature stability: ±0.005°C at -40°C (ethanol); ±0.005°C at 25°C (water); ±0.007°C at 150°C (oil)
• Temperature resolution displayed: 0.01°C
• Tank volume: 9.2 liters
• Access opening / well: 172 mm x 94 mm (6.8” x 3.7”)
• Typical heat-up time (25°C to 150°C): 60 minutes
• Typical cool-down time (25°C to -40°C): 110 minutes
• Dimensions (H x W x D): 584 mm x 305 mm x 622 mm
• Power options: 115V 60 Hz or 230V 50 Hz; approx. 1,400 W
• Maximum loggers supported: up to 16 rigid ValProbe RT loggers; up to 20 freeze-dryer loggers
