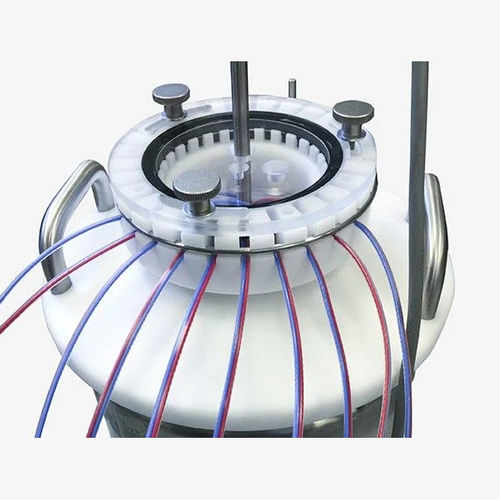

KAYE LN2 Comparator (KG-300) liquid nitrogen bath for semi-automated calibrations at approximately -196°C. Designed for use with KAYE Validators and Kaye IRTD, the unit enables stable, long-duration calibrations at ultra-low temperature with low LN2 evaporation. The included thermocouple fixture holds up to 48 thermocouples and centers the IRTD within the calibration block.

Features

• Semi-automated thermocouple calibration support when paired with KAYE Validators
• Stainless-steel Dewar for safe operation and durability
• Thermocouple holder for up to 48 thermocouples
• Kaye IRTD mounting at block center for repeatable measurements
• Easy-fill port for controlled LN2 replenishment
• Low evaporation design for stable calibration points over several hours
• Foam lid to reduce LN2 evaporation between runs
• Rugged wheeled transport case for storage and mobility

Applications

• Ultra-low temperature freezers
• LN2 freezers

Specifications
Model: KG-300
Temperature*: About -196°C (depends on atmospheric pressure)
Stability*: Typically better than 5 mK over 20 minutes
Thermal wells: 18 × 6.7 mm I.D.; 1 × 3.1 mm I.D.; 1 × 4.8 mm I.D.
Immersion depths: 315 mm (top of TC fixture to bottom of well); aluminum block 140 mm
Evaporation rate: ≈ 0.15 L/h with lid secured
Volume: 5.5 L
Outer diameter: 168 mm
Height: 400 mm
*Temperature and stability vary with atmospheric pressure (dt/dp >> 0.085 mK/Pa).
