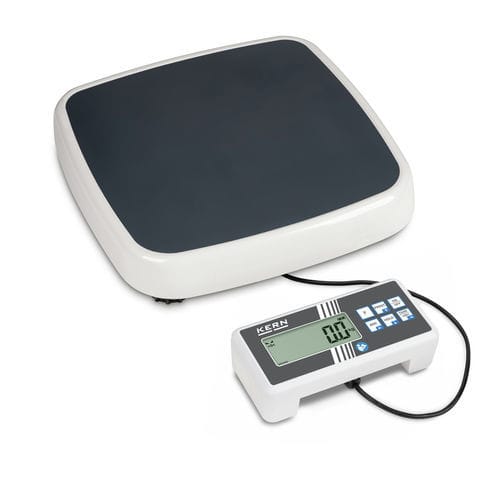

Electronic patient weighing scale MPN 200K-1M

digitalbariatricmedical

Description
Professional integratable personal floor scale for wireless transfer of weighing data to EMR/EHR systems, also suitable for overweight and obese patients. Designed for daily use in hospitals, clinics and medical practices with hygienic, easy-to-clean surfaces and secure anti-slip platform.

Features

• Verification (class III) optional
• Approved as a medical device according to Regulation (EU) 2017/745 (MDR)
• Integrated WiFi interface for wireless transfer of weights directly into digital patient records (EMR/EHR integration)
• KERN Universal Port (KUP) for connection of external interface adapters (e.g. RS-232, USB, Bluetooth, WiFi, Ethernet) without installation outlay
• Version with [Max] = 250 kg and larger weighing plate, specially suitable for overweight patients
• Robust design for daily professional use; easy and hygienic cleaning
• Secure, non-slip platform with height-adjustable rubber feet and level indicator
• Flexible positioning of display device (free-standing or wall-mounted); wall mount for display device included
• Hold function: determines a mean average weight value while patient is unable to stand still
• Parent-child function: tare the parent, then weigh parent + child to obtain child weight
• BMI function to classify underweight/normal weight/overweight
• High resolution readability: readability [d] can be increased by one decimal place for 5 seconds by touch of a key
• Battery- or mains-powered; rechargeable battery operation optional

Applications

• Inpatient facilities (hospitals)
• Outpatient clinics and medical practices
• Care homes and nursing facilities
• Occupational health services
• Medical departments in companies

Technical data (table)
Weighing capacity [Max] : 250 kg
Readability [d] : 0,1 kg
Units : kg
Interfaces : RS-232 (optional), Bluetooth (optional), WiFi, Alibi memory (optional, factory), USB-Device (optional), KUP
Dimensions weighing platform (W×D×H) : 365×370×80 mm
Supplied power supply : Power supply & battery function (battery not included)
Battery operating time : 20 h
Display device cable length : 1.8 m
Net weight : 8.4 kg

Technical specifications

• Model: MPN 200K-1M
• Weighing capacity [Max]: 250 kg
• Readability [d]: 0,1 kg (high-resolution mode adds one decimal for 5 s)
• Units: kg
• Interfaces: Integrated WiFi; RS-232, Bluetooth, USB-Device, Alibi memory available as options via KUP
• Platform dimensions (W×D×H): 365 × 370 × 80 mm
• Power: Mains power supply included; battery operation possible (battery not included); rechargeable battery optional
• Battery operating time: approx. 20 h
• Display device cable length: 1.8 m
• Net weight: 8.4 kg
• Approval: Conforms to Regulation (EU) 2017/745 (MDR); conformity assessment ex works possible
• GTIN / EAN: 4045761242692
