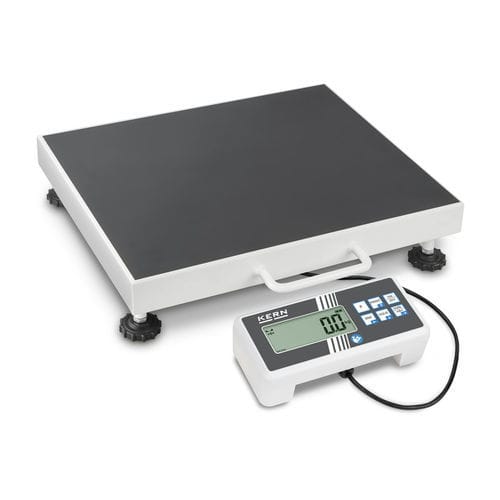

Digital patient weighing scale MPN 300K-1LM

for hospitalsbariatricmedical

Description
Integratable professional personal floor scale for wireless transfer of weighing data to EMR/EHR systems, adapted for overweight patients up to the obese category and approved as a medical device under Regulation (EU) 2017/745. Integrated WiFi enables direct transfer of weight values into digital patient records. KERN Universal Port (KUP) supports external interface adapters (RS-232, USB, Bluetooth, WiFi, Ethernet) without installation outlay.

Key features

• Weighing capacity up to 300 kg (version with larger weighing plate).
• Integrated WiFi for direct wireless data transfer to EMR/EHR systems to reduce manual documentation errors.
• KERN Universal Port (KUP): supports external adapters for RS-232, RS-485, USB, Bluetooth, WiFi, analogue, Ethernet, etc.
• Options: RS-232 (optional), Bluetooth (optional), Alibi memory (optional, factory), USB-Device (optional), rechargeable battery (optional).
• Large, non-slip and wear-resistant platform surface for secure footing and hygienic cleaning.
• Height-adjustable rubber feet and level indicator for precise levelling.
• Sturdy handle for transport; display position flexible (free-standing or wall-mounted); wall mount for display included.
• Hold function: computes an average weight value for patients unable to stand still.
• Parent-child (tare) function to determine child weight when held by parent.
• BMI function for classification of underweight/normal weight/overweight.
• High-resolution readability: readability [d] can be increased by one decimal place for 5 s by key touch.
• Battery or mains operation; rechargeable battery operation optional.

Applications

• Hospitals and inpatient facilities
• Outpatient clinics and practices
• Retirement and nursing homes
• Health authorities and occupational health services

Technical specifications

• Weighing capacity [Max]: 300 kg
• Readability [d]: 0.1 kg
• Units: kg
• Interfaces: RS-232 (optional), Bluetooth (optional), WiFi (integrated), Alibi memory (optional, factory), USB-Device (optional), KUP
• Weighing platform dimensions (W×D×H): 400 × 500 × 120 mm
• Supplied power: AC adapter; battery function (battery not included); rechargeable battery optional
• Battery operating time: approx. 20 h
• Display cable length: 1.8 m
• Net weight: 11.63 kg
• Construction type: single-range scale
• Conformity assessment ex works: possible
• Medical approval: Regulation (EU) 2017/745 (MDR)
• GTIN / EAN: 4045761242715
