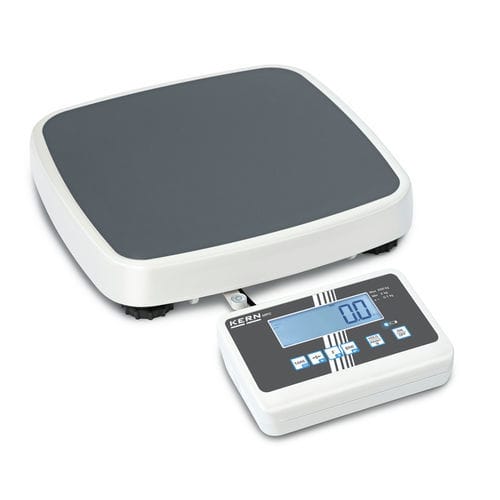

Digital platform scale MPC 250K100M

electronicmedicalfor humans

Short description
Compact personal floor scale approved for professional medical use in diagnostics (verification optional). Robust, hygienic and easy to clean. Remote display with flexible positioning and a sturdy handle for transport.

Key features

• Approved as a medical device according to Regulation (EU) 2017/745 (MDR).
• Bestseller for doctor’s surgeries, chemists and hospitals.
• Robust design for daily use in a professional environment.
• Easy and hygienic cleaning.
• Secure and non-slip positioning with height-adjustable rubber feet.
• Level indicator to level the balance precisely.
• Sturdy handle for easy transportation.
• Flexible positioning of display device: free-standing or wall-mounted (wall mount for display device standard).
• Large platform with non-slip and wear-resistant plastic surface to provide a secure footing for patients.
• High resolution readability: readability [d] can be increased by one decimal place for 5 s by the touch of a key.
• BMI function to determine underweight/normal weight/surplus weight.
• Hold function: calculates a mean average weight value for patients unable to stand still.
• Parent-child function: tare parent weight then weigh parent + child to obtain child weight.
• GLP / ISO report: printout of weight value, BMI etc. with date and time (available in combination with RS-232 interface cable and printer).
• Battery- or mains-powered; rechargeable battery operation optional.
• Protective working cover included with delivery.

Applications

• Inpatient facilities
• Outpatient facilities
• Retirement and nursing homes
• Health authorities
• Company medical service

Technical Data (summary)
Weighing capacity [Max]: 250 kg
Readability [d]: 0.1 kg
Units: kg
Interfaces: RS-232 (optional, factory)
Dimensions weighing platform (W×D×H): 365×370×80 mm
Supplied power supply: Power supply & battery function (battery not included)
Battery operating time: 20 h
Rechargeable battery operating time - backlight off: 40 h
Display device cable length: 1.8 m
Net weight: 8.4 kg
Conformity assessment possible ex works: yes
Approval in accordance with 2017/745 (MDR, med.): yes
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761192973

Technical characteristics

• Model: MPC 250K100M
• Weighing capacity: 250 kg
• Readability: 0.1 kg
• Platform dimensions (W×D×H): 365×370×80 mm
• Interfaces: RS-232 (optional, factory)
• Power: mains and battery function (battery not included); rechargeable battery optional
• Battery operating time: 20 h (standard); rechargeable battery operating time (backlight off): 40 h
• Display device cable length: 1.8 m
• Net weight: 8.4 kg
• Functions: BMI, Hold, parent-child, extended decimal readability, GLP/ISO report (with options)
• Medical approval: Regulation (EU) 2017/745 (MDR)
• GTIN / EAN: 4045761192973
