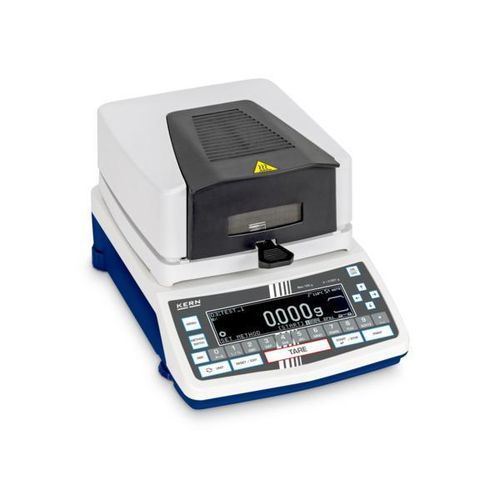

Digital moisture balance DIS 100-3

precisionanalyticalfor scientific research

Overview

• Very high resolution: 1 mg readout for precise analyses even with low moisture content
• Intuitive three-step operation (tare – add sample – start) for simple, reproducible analyses
• Real-time display of drying curves directly on the backlit graphic LCD (digit height 15 mm)
• 400 W halogen quartz glass heater with precise temperature control, suitable for temperature-sensitive samples
• Weighing system with electromagnetic force compensation and overload protection
• Internal memory for up to 1,000 results and programmable sample descriptions
• Password protection and date/time display as standard
• USB interface for data transfer to PC/printer; other interfaces model-dependent
• Includes 50 sample plates and protective working cover; application handbook available for download

Applications

• Food processing and quality control
• Pharmaceutical and chemical industries
• Cosmetics, plastics and polymer manufacturing
• Analytical and R&D laboratories
• Construction materials, cement and ceramics
• Agricultural product control and biomass energy
• Water and wastewater management

Technical Data
Weighing capacity [Max]: 120 g
Readability [d]: 0.001 g (1 mg)
Weighing system: Electromagnetic force compensation
Moisture range: 0.01% – 100%
Temperature range: 30 °C – 175 °C (1 °C steps)
Stabilization time: 3 s
Units: g, % moisture, % dry mass, % ATRO
Reproducibility: 0.001 g
Linearity: ±0.003 g
Moisture readout resolution: 0.001%
Drying modes: Standard, Rapid, Gentle, Step drying
Switch-off criteria: Time-controlled, automatic, manual
Input voltage / Power [Max]: 230 V AC, 50 Hz
GTIN / EAN: 4045761492981

Accessories & Options (selected)

• 50 sample plates and protective working cover included
• Interfaces: USB (standard); RS-232, LAN, DUAL, Digital I/O model-dependent
• Optional accredited calibration (DAkkS)

Specifications

• Model: DIS 100-3
• Weighing capacity: 120 g
• Readability: 0.001 g (1 mg)
• Heater: Halogen quartz glass, 400 W
• Memory: up to 1,000 measurement results
• Display: Backlit graphic LCD, digit height 15 mm
• Power: 230 V AC, 50 Hz
• Included accessories: 50 sample plates, protective cover
• GTIN / EAN: 4045761492981
