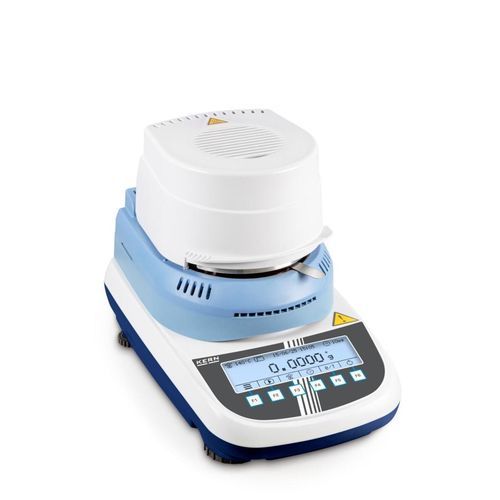

Electronic moisture balance DLB 60-4A

analyticaldigitalfor laboratory

Product overview
Moisture analyzer with intuitive graphic display and moisture measurement resolution down to 0.001%. Designed for precise moisture determination in laboratory and production environments.

• High-precision moisture analysis, suitable for the plastics industry
• Backlit LCD graphic display, digit height 11 mm
• 6 direct keys for rapid access to main functions (home, start drying, select temperature, select shut-off criteria, tare/zero, stand-by)
• During measurement: current temperature, heating profile, active shut-off criteria, abort/stop drying, display current drying parameters, toggle result unit
• At end of measurement: exit drying program, print measurement report, (de)activate and edit GLP parameters, display detailed result, toggle result unit
• 400 W halogen-quartz glass heater
• User guidance in 6 languages (DE, EN, FR, IT, ES, PT)
• Automatic taring on measurement start when closing the lid
• Last measured value remains on display until replaced
• Internal GLP: printout of balance ID, project ID, user ID, drying-process values, etc.
• 10 sample plates included
• Protective working cover included

Applications

• Food industry
• Environmental analysis
• Research and development
• Agricultural industry
• Water management

Technical Data
Weighing capacity [Max]: 60 g
Readability [d]: 0.0001 g
Weighing system: Force compensation (electromagnetic)
Sample – Moisture content: 0.01% - 100%
Sample – Dry content: 100% - 0.01%
Temperature range (steps): 35 °C - 160 °C (1 °C)
Stabilization time: 4 s
Units: g, mg, % rH, % Dry mass
Reproducibility: 0.0001 g
Linearity: ± 0.0006 g
Readability moisture [d] (%): 0.001%
Drying modes: Standard drying, Rapid drying
Switch-off criteria: time-controlled, automatic, manual
GTIN/EAN: 4045761492752

Characteristics / technical specifications

• Model: DLB 60-4A
• Weighing capacity: 60 g
• Readability: 0.0001 g
• Moisture readability: 0.001%
• Temperature range: 35 °C - 160 °C (1 °C steps)
• Heater: 400 W halogen-quartz glass heater
• Weighing principle: electromagnetic force compensation
• Stabilization time: 4 s
• Units supported: g, mg, % rH, % Dry mass
• Includes: 10 sample plates and protective working cover
• User guidance languages: DE, EN, FR, IT, ES, PT
• GTIN/EAN: 4045761492752
