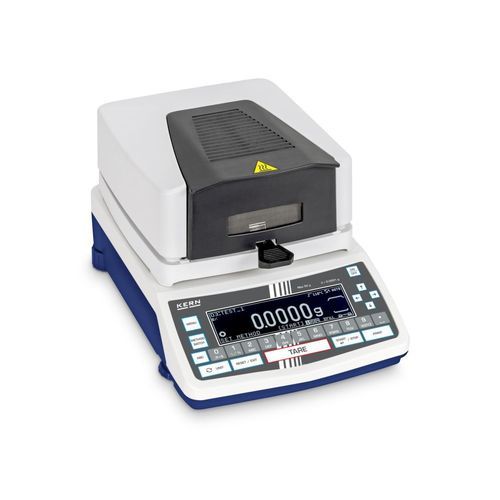

Digital moisture balance DIS 50-4

analyticalfor scientific researchfor the pharmaceutical industry

Product overview
High-precision moisture analyzer designed for demanding moisture determinations, particularly suitable for plastic granulates and temperature-sensitive samples.

Features

• Very high resolution: 0.1 mg (0.0001 g) readout for accurate results at low moisture levels
• Intuitive three-step operation (tare – add sample – start) for simple, repeatable analyses
• Real-time visualisation of drying curves directly on the backlit graphical LCD (digit height 15 mm)
• 400 W halogen quartz glass heater for fast and controlled drying
• Excellent temperature control suitable for sensitive samples; adjustable range 30 °C – 175 °C (1 °C steps)
• Weighing system with electromagnetic force compensation and overload protection
• Internal memory for up to 1,000 measurement results; programmable sample descriptions (up to 1,000)
• Password protection for stored settings and data; date and time display as standard
• USB data interface for transfer to PC/printer; additional interfaces available as options
• Includes 50 sample plates and protective working cover

Applications

• Food processing and quality control
• Pharmaceutical industry
• Chemical industry
• Cosmetics production
• Plastics and polymer industry (suitable for plastic granulates)
• Analytical and chemical laboratories
• Building materials and cement industry
• Agricultural product recording and quality assurance
• Water and wastewater management (e.g. sewage treatment plants)
• Biomass energy generation
• Ceramics and non-metallic materials industry

Technical Data
Weighing capacity [Max]: 50 g
Readability [d]: 0.0001 g
Weighing system: Electromagnetic force compensation
Sample – Moisture content: 0.001% - 100%
Sample – Dry content: 100% - 0.001%
Temperature range (steps): 30 °C - 175 °C (1 °C)
Stabilization time: 4 s
Units: g; % Humidity; % Dry mass; % ATRO
Reproducibility: 0.0001 g
Linearity: ± 0.0003 g
Readability moisture [d] (%): 0.0001%
Drying modes: Standard, Rapid, Gentle, Step drying
Switch-off criteria: Time-controlled, Automatic, Manual
Input voltage / Power [Max]: 230 V AC, 50 Hz
GTIN/EAN: 4045761492998

Characteristics / technical specifications

• Model: DIS 50-4
• Weighing capacity: 50 g
• Readability: 0.0001 g (0.1 mg)
• Weighing principle: Electromagnetic force compensation (EMFC)
• Heater: Halogen quartz glass heater, 400 W
• Temperature range: 30 °C – 175 °C (1 °C steps)
• Stabilization time: approx. 4 s
• Memory: up to 1,000 measurement results and sample descriptions
• Included accessories: 50 sample plates, protective working cover
• Interfaces: USB (optional RS-232, LAN, Bluetooth/Ethernet/Wi‑Fi via adapters)
• Drying modes and stop criteria: multiple modes; time-controlled, automatic, manual stop
• GLP/ISO functions: date/time display, printable sample descriptions and measurement protocol
• EAN/GTIN: 4045761492998
