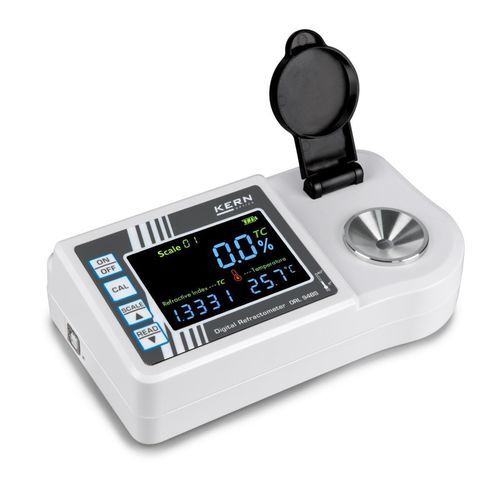

Digital refractometer ORL 94IN

processbenchtoptabletop

Product overview

• Digital desktop refractometer ORL 94IN with pre-installed scales for refractive index measurements and industrial/automotive applications.
• Accurate, universal and maintenance-free instrument with extra-large measuring range and an easy-to-read display that includes temperature indication.
• Handy design for convenient, rapid everyday use; scale selection via button.

Pre-installed scales

• Brix
• Refractive index
• Windshield washer fluid
• Battery fluid
• Ethylene glycol (%)
• Ethylene glycol (°C) according to ASHRAE standard
• Propylene glycol (%)
• Propylene glycol (°C) according to ASHRAE standard

Main features

• Automatic temperature compensation (ATC) integrated to avoid manual conversion.
• Measurement by total reflection.
• Mean value measurements possible.
• Quick and user-friendly calibration using commercially available distilled water.
• USB data interface for PC/printer connection.

Software

• Free OXR-BASIC software available for performing measurements and for saving/exporting measurement results (download area).

Scope of delivery

• Pipette
• Storage case
• USB cable
• Power adapter
• Screwdriver
• Operating instructions

Technical Data (summary)
Refractometer type: Desktop refractometer
Scale - Display type: Digital
Area of application: Automotive / Industry
Measuring method: Total reflection
Measurement temperature (°C): 0 °C – 40 °C
Automatic temperature compensation (ATC): Yes
IP protection - complete device: IP43
Dimension (W×D×H): 180×100×55 mm
Brix scale: Yes (Measuring range Brix: 0 % – 94 %; Readout Brix: 0,1 %)
Refractive index: Yes (Measuring range: 1,3330 nD – 1,5290 nD; Readout: 0,0001 nD)
Battery fluid scale: Yes (Measuring range: 1,000 kg/l – 1,500 kg/l; Readout: 0,001 kg/l)
Ethylene glycol (%) scale: Yes (Measuring range: 0 % – 100 %; Readout: 0,1 %)
Ethylene glycol (°C) scale: Yes (Measuring range: -50 °C – 0 °C; Readout: 0,1 °C)
Propylene glycol (%) scale: Yes (Measuring range: 0 % – 100 %; Readout: 0,1 %)
Propylene glycol (°C) scale: Yes (Measuring range: -60 °C – 0 °C; Readout: 0,1 °C)
Windshield washer fluid scale: Yes (Measuring range: -60 °C – 0 °C; Readout: 0,1 °C)
System requirements CPU: Intel Core i3 or higher, AMD Ryzen 5 or higher
System requirements clock speeds: 2.8 GHz
GTIN/EAN number: 4045761489448

Characteristics / technical specifications

• Model: ORL 94IN
• Type: Digital desktop refractometer
• Measuring method: Total reflection
• Measurement temperature range: 0 °C – 40 °C (with ATC)
• Protection class: IP43 (device)
• Dimensions (W×D×H): 180×100×55 mm
• Brix range: 0 % – 94 %; resolution 0.1 %
• Refractive index range: 1.3330 nD – 1.5290 nD; resolution 0.0001 nD
• Battery fluid range: 1.000 kg/l – 1.500 kg/l; resolution 0.001 kg/l
• Ethylene and propylene glycol scales: concentration ranges 0–100 % (0.1 % resolution) and temperature scales down to -50 °C / -60 °C (0.1 °C resolution)
• Interfaces: USB (data interface)
• Power: plug-in power supply (standard version)
• Included accessories: pipette, storage case, USB cable, power adapter, screwdriver, operating instructions
• EAN: 4045761489448
• Price (net): 990.00 EUR
