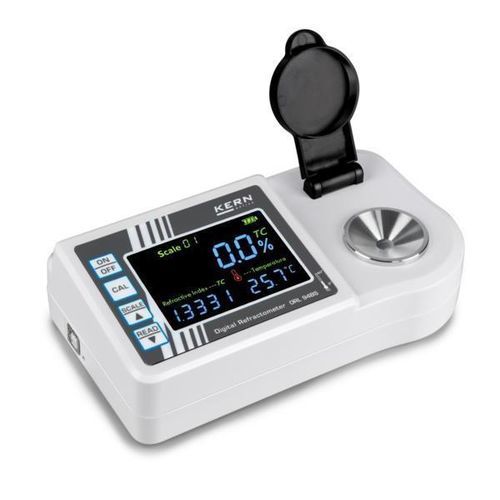

Digital refractometer ORL 94LM

for the food industrybenchtopwith ATC

Overview

• Digital refractometer with pre-installed scales for refractive index measurements and food applications.
• Universal desktop instrument, maintenance-free, with large measuring range and high resolution.
• Large, easy-to-read display with integrated temperature indication and automatic temperature compensation (ATC) for efficient operation.
• Mean value measurement available; quick calibration using distilled water.

Pre-installed scales

• Brix
• Refractive index
• Fructose (fruit sugar)
• Glucose (grape sugar)
• Lactose (milk sugar)
• Maltose (malt sugar)
• Dextran
• Salt content (NaCl) %
• Salt content (NaCl) ‰
• Salt content (specific gravity)

Scope of delivery

• Pipette
• Storage case
• USB cable
• Power adapter
• Screwdriver
• Operating instructions

Software

• Free OXR-BASIC software for performing measurements and for saving and exporting measurement results (available in the download area).

Technical data (table)
Refractometer type: Desktop refractometer
Scale - Display type: Digital
Area of application: Food
Measuring method: Total reflection
Measurement temperature (°C): 0 °C – 40 °C
Automatic temperature compensation (ATC): Yes
IP protection - complete device: IP43
Dimension (W×D×H): 180×100×55 mm
Brix scale: Yes
Measuring range Brix: 0 % – 94 %
Readout Brix: 0,1 %
Scale salinity (NaCl) %: Yes
Measuring range salinity (NaCl) %: 0 % – 28 %
Readout salinity (NaCl) %: 0,1 %
Scale salinity (NaCl) ‰: Yes
Measuring range salinity (NaCl) ‰: 0 ‰ – 280 ‰
Readout salinity (NaCl) ‰: 1 ‰
Scale salinity (spec. weight): Yes
Measuring range salinity (spec. weight): 1,000 – 1,220
Readout salinity (spec. weight): 0,001
Scale for Refractive index: Yes
Measuring range refractive index: 1,3330 nD – 1,5290 nD
Readout refractive index: 0,0001 nD
Scale for fructose (fruit sugar): Yes
Measuring range fructose: 0 % – 69 %
Readout fructose: 0,1 %
Scale for glucose: Yes
Measuring range glucose: 0 % – 60 %
Readout glucose: 0,1 %
Scale for dextran: Yes
Measuring range dextran: 0 % – 11 %
Readout dextran: 0,1 %
Scale lactose (milk sugar): Yes
Measuring range lactose: 0 % – 17 %
Readout lactose: 0,1 %
Scale maltose: Yes
Measuring range maltose: 0 % – 16 %
Readout maltose: 0,1 %
System requirements CPU: Intel Core i3 or higher, AMD Ryzen 5 or higher
System requirements clock speeds: 2.8 GHz
GTIN/EAN number: 4045761489455

Characteristics / specifications

• Refractometer type: Desktop refractometer
• Display type: Digital
• Area of application: Food industry measurements
• Measuring method: Total reflection
• Measurement temperature: 0 °C – 40 °C
• Automatic temperature compensation (ATC): Yes
• IP protection: IP43
• Dimensions (W×D×H): 180×100×55 mm
• Brix measuring range: 0 % – 94 %, resolution 0,1 %
• Refractive index range: 1,3330 nD – 1,5290 nD, resolution 0,0001 nD
• Salinity (NaCl) % range: 0 % – 28 %, resolution 0,1 %
• Salinity (NaCl) ‰ range: 0 ‰ – 280 ‰, resolution 1 ‰
• Salinity (specific weight) range: 1,000 – 1,220, resolution 0,001
• Preinstalled sugar scales: fructose, glucose, lactose, maltose, dextran
• Software requirements: Intel Core i3 / AMD Ryzen 5 or higher, 2.8 GHz
• GTIN/EAN: 4045761489455
