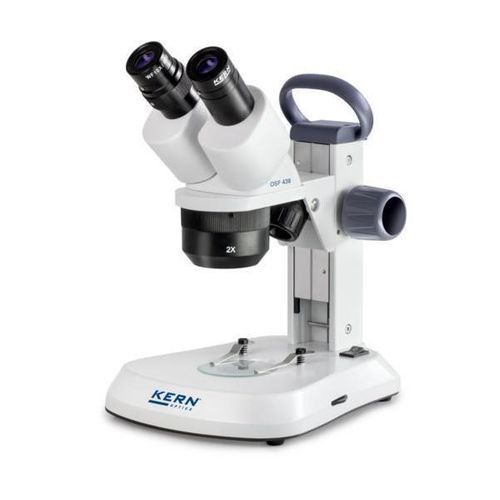

Teaching stereo microscope OSF 438

for biologyinspectionlaboratory

Description

• The KERN OSF-438 features an integrated handle and a stable mechanical stand, developed for schools, workshops and routine inspection tasks.
• Integrated LED incident and transmitted illumination, continuously dimmable, provide adjustable lighting for specimens.
• Greenough stereo optics with an ergonomic working area ensure comfortable binocular observation and a natural three-dimensional impression.
• Turnable objective turret with preset magnifications (1×, 2×, 3×) speeds up magnification changes.
• Eyepieces are fixed in the tube to protect them from loss or damage.
• Coarse focusing mechanism and 57 mm working distance allow handling of thicker specimens and efficient focusing.
• A wide range of eyepieces, external illumination units and camera adapters are available as accessories.
• Scope of delivery: protective dust cover, eye cups and multi-lingual user instructions.

Applications

• Primary application areas: training, in vitro fertilisation, parasite detection, zoology and botany, tissue preparation, sectioning, quality control.
• Typical samples: specimens requiring a three-dimensional impression (insects, seeds), circuit boards and components.

Technical data
Optical system: Greenough
Tube type: Binocular
Ocular magnification: 10× (field 20 mm)
Standard objectives: 1×, 2×, 3×
Illumination: LED incident 1 W, LED transmitted 0.35 W, continuously dimmable
Focusing mechanism: coarse drive
Working distance: 57 mm
Stand type: mechanical
Dimensions (W×D×H): 230×180×275 mm
GTIN/EAN: 4045761170100

Accessories (selection)

• Cleaning liquid OCS-A1101
• Cleaning set TOCS 901
• Eyepieces (OZB-A4101, OZB-A4103, OZB-A4104, OZB-A4106, OZB-A4151)
• Ocular cameras (ODC 874, ODC 881-N)
• Protective dust cover OBB-A1387
• Stand insert frosted glass OZB-A4815
• Travel adapter YKA-02

Characteristics / specifications

• Model family: OSF-43 (OSF 438 belongs to this family)
• Optical principle: Greenough stereo optics
• Binocular tube with fixed 10× oculars (20 mm field)
• Objective turret with preset magnifications 1×, 2×, 3×
• Integrated LED incident (1 W) and transmitted (0.35 W) illumination, continuously dimmable
• Coarse focusing; stable mechanical stand
• Working distance: 57 mm
• Dimensions: 230×180×275 mm
• Includes: dust cover, eye cups, multilingual manual
• GTIN / EAN: 4045761170100
