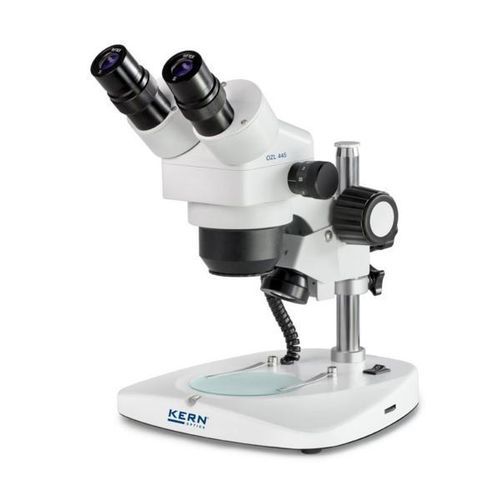

Optical stereo microscope OZL 445

for biologyinspectionlaboratory

Description

• The KERN OZL 445 is a stereo zoom microscope designed for easy handling, flexibility and stability, offering an economical solution for educational, workshop and assembly environments.
• Standard LED incident and transmitted illumination provides uniform, adjustable lighting of the specimen.
• Excellent optical performance and a large working area deliver comfort and precision for routine inspection, repair and training tasks, particularly in electronics and laboratory settings.
• Continuous total magnification range: 7.5×–36× (with standard 10× eyepieces).
• Available in a binocular configuration; eyepieces are fixed in the tube to prevent loss or damage.
• Pillar stand allows removal of the microscope head for integration into modular systems or alternative stands.
• Scope of delivery includes dust cover, eye cups and multilingual instructions; a wide range of eyepieces, external illumination units and auxiliary objectives are available as accessories.

Applications

• Main application areas: in vitro fertilisation, parasite detection, zoology and botany, tissue preparation, dissection, quality control.
• Typical samples: three-dimensional specimens such as insects, seeds, circuit boards and electronic components where depth and surface detail are important.

Technical Data
Optical system: Greenough
Tube type: Binocular
Ocular magnification: 10×
Ocular visual field: 20 mm
Magnification ratio: 4.8:1
Zoom range: 0.75×–3.6× (continuous)
Total magnification (with standard eyepieces): 7.5×–36×
Illumination: LED incident (1 W) and LED transmitted (0.35 W)
Focusing mechanism: coarse drive
Working distance: 86 mm
Maximum sample height: 100 mm
Stand type: pillar (removable head for modular integration)
Dimensions (W×D×H): 230×235×360 mm
GTIN/EAN: 4045761170377

Features / Specifications

• Model: OZL 445
• Product family: OZL-44
• Continuous zoom magnification
• Fixed eyepieces for protection
• Wide working area suitable for assembly and repair
