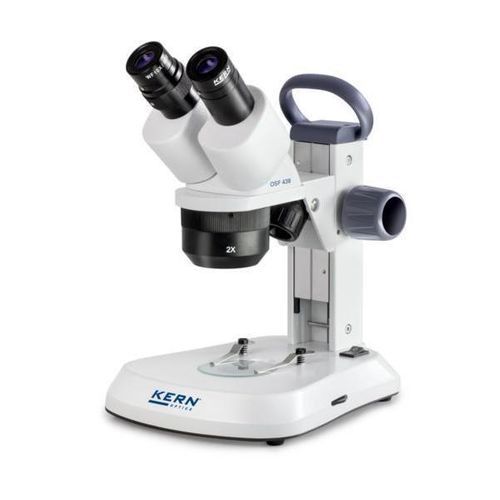

Optical stereo microscope OSF 439

for teachingfor biologyinspection

Overview

• The KERN OSF-439 stereo microscope combines a Greenough optical system and a stable mechanical stand, designed for schools, workshops and industrial training.
• Integrated handle and robust mechanical support for easier handling and transport.
• LED incident (reflected) and LED transmitted illumination are included and continuously dimmable to adapt lighting to the sample.
• Turnable turret with predefined objectives (1×, 2×, 4×) speeds up magnification changes.
• Eyepieces 10× fixed in the tube to prevent loss or damage.
• Ergonomic working surface and coarse focusing provide comfortable and efficient operation.
• Delivery includes dust cover, eye cups and multilingual user manual.

Features

• Integrated handle
• Stable mechanical stand
• LED incident illumination (1 W)
• LED transmitted illumination (0.35 W), continuously dimmable
• Turnable turret with 1×, 2×, 4× objectives
• Fixed eyepieces 10× in tube
• Ergonomic working distance: 57 mm
• Battery operation capable; external power supply available

Applications

• Training and education, workshops and laboratories
• In vitro fertilisation and embryology labs
• Parasitology and biological sample inspection
• Zoology, botany, dissection and tissue preparation
• Quality control and inspection of components and PCBs
• Samples requiring depth perception: insects, seeds, circuit boards, components

Technical data (table)
Optical system: Greenough
Tube type: Binocular
Ocular magnifications: 10×
Ocular visual field: 20 mm
Standard objectives: 4×, 1×, 2×
Illuminance: Reflected light, Transmitted light
Illumination intensity transmitted light: 0.35 W
Illumination type transmitted light: LED
Illumination intensity incident light: 1 W
Illumination type incident light: LED
Focusing mechanism: coarse drive
Working distance: 57 mm
Stand type: mechanical
Dimensions (W×D×H): 230×180×275 mm
GTIN/EAN number: 4045761170117

Technical specifications

• Model: OSF 439
• Optical system: Greenough
• Tubes: Binocular
• Eyepieces: 10× (fixed in tube)
• Objectives (turret): 1×, 2×, 4×
• Visual field: 20 mm
• Illumination transmitted: LED, 0.35 W (dimmable)
• Illumination incident: LED, 1 W
• Focusing: coarse drive
• Working distance: 57 mm
• Stand: mechanical
• Dimensions (W×D×H): 230×180×275 mm
• GTIN/EAN: 4045761170117
