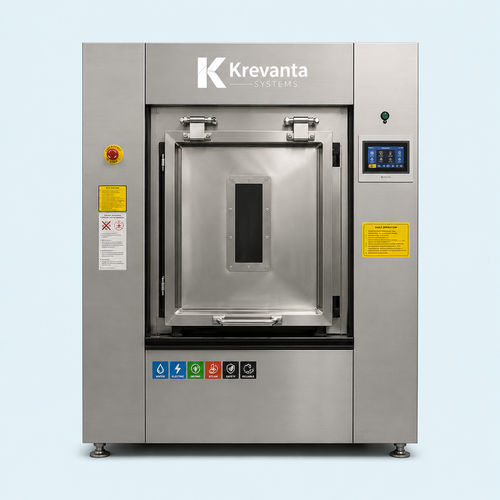

Front-loading washer-extractor KS-BW100

sanitary barrier

Product Overview
The KS-BW100 barrier washer-extractor is a 100 kg-capacity pass-through laundry system engineered for central hospital laundries and healthcare facilities requiring strict infection control and high throughput. The hygienic barrier-wall configuration separates contaminated and clean sides to minimize cross-contamination. Constructed with a SUS304 stainless steel drum and industrial-grade components, the KS-BW100 combines durable build with an advanced microprocessor control for accurate process management. Available with electric or steam heating, it is suitable for continuous operation in hospitals, pharmaceutical and biotech laundries, cleanroom textile processing and large commercial laundries.

Applications

• Central hospital laundries and healthcare laundries
• Infection-control focused laundry operations
• Pharmaceutical manufacturing laundries
• Biotechnology laboratory laundries
• Cleanroom and controlled-environment textile processing
• Large commercial laundry facilities with high daily throughput

Key Features

• Hygienic barrier-wall (pass-through) design separating contaminated and clean zones
• SUS304 stainless steel inner drum
• Industrial-grade construction for continuous operation
• Advanced microprocessor control system for programmable cycles
• Electric or steam heating options
• Optimized water and energy consumption for high-volume processing
• Designed for consistent wash quality and high daily throughput

Technical Specifications

• Model — KS-BW100
• Nominal Capacity — 100 kg
• Inner Drum Diameter × Depth — Ø1200 × 890 mm
• Motor Power — 11 kW
• Wash Speed — 32 RPM
• Uniform Distribution Speed — 65 RPM
• Mid Extraction Speed — 350 RPM
• High Extraction Speed — 750 RPM
• Heating Method — Electric / Steam
• Steam Pipe Diameter — Ø32 (DN25)
• Water Pipe Diameter — Ø60 (DN50)
• Drain Pipe Diameter — Ø140 mm
• Water Inlet Pressure — 0.2–0.3 MPa
• Steam Pressure — 0.4–0.6 MPa
• Compressed Air Pressure — 0.4–0.5 MPa
• Water Consumption — 1,650 kg / Cycle
• Steam Consumption — 50 kg / Cycle
• Electric Heating Power — 48 kW
• Power Supply — 380 V / 3 Phase / 50 Hz
• Machine Dimensions (Front / Rear) — 1720 / 1770 mm
• Machine Dimensions (Left / Right) — 1800 / 1990 mm
• Machine Height — 2150 / 2300 mm
• Machine Weight — 3,000 kg
• Technical Note — Steam parameters apply only to steam-heated models
