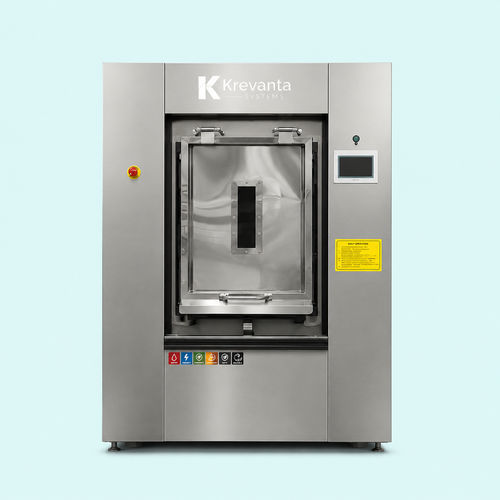

Front-loading washer-extractor KS-BW30

sanitary barriercentrifugal

Product Overview
The KS-BW30 barrier washer-extractor is a hygienic pass-through industrial laundry machine designed for hospital and healthcare laundries where strict infection control is required. Its barrier wall separates the dirty loading side from the clean unloading side to reduce cross-contamination and to support regulated hospital laundry workflows. Constructed with an SUS304 stainless steel inner drum, a heavy-duty frame and an advanced microprocessor control system, the KS-BW30 provides reliable washing performance, high-speed extraction and efficient resource utilization. Available with electric or steam heating, it is engineered for continuous-duty operation in hospitals, pharmaceutical and biotechnology facilities, cleanroom textile processing units and linen rental services.

Key Capabilities

• Hygienic pass-through (barrier) design separating dirty and clean sides
• SUS304 stainless steel inner drum
• Advanced microprocessor control with programmable wash cycles
• High-speed extraction for effective water removal
• Heating options: electric or steam
• Designed for continuous operation in critical healthcare environments

Applications

• Hospital laundries and healthcare facilities
• Pharmaceutical production and clean utilities
• Biotechnology laboratories
• Cleanroom textile processing units
• Healthcare linen rental and service providers

Notes
Technical description and feature set are based on the KS-BW Series manufacturer overview. Steam parameters apply only to steam-heated models.

Technical specifications

• Model: KS-BW30
• Nominal capacity: 30 kg
• Inner drum size: Ø900 × 500 mm
• Motor power: 4 kW
• Wash speed: 35 RPM
• Uniform distribution speed: 70 RPM
• Mid extraction speed: 400 RPM
• High extraction speed: 800 RPM
• Heating method: Electric / Steam
• Electric heating power: 24 kW
• Steam pipe diameter: Ø25 (DN20)
• Water pipe diameter: Ø50 (DN40)
• Drain outlet: Ø89 mm
• Water inlet pressure: 0.2–0.3 MPa
• Steam pressure: 0.4–0.6 MPa
• Compressed air pressure: 0.4–0.56 MPa
• Water consumption: 450 kg per cycle
• Steam consumption: 25 kg per cycle (steam models)
• Power supply: 380 V / 3 Phase / 50 Hz
• Front / Rear dimensions: 1400 / 1450 mm
• Left / Right dimensions: 1270 / 1460 mm
• Height: 1800 / 1950 mm
• Net weight: 1,140 kg
