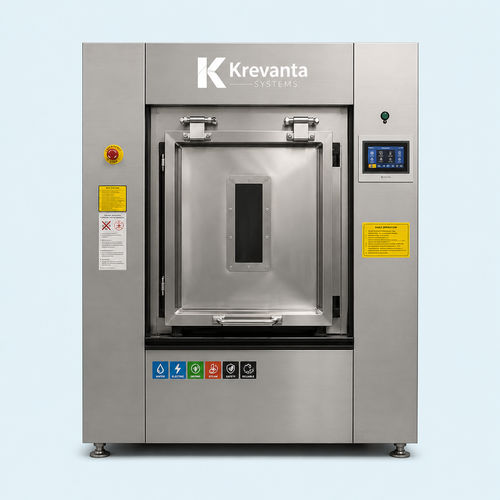

Front-loading washer-extractor KS-BW50

sanitary barrier

Overview
The KS-BW50 pass-through barrier washer-extractor is a 50 kg nominal capacity industrial laundry machine engineered for healthcare, pharmaceutical and cleanroom laundry processing. The barrier wall (pass-through) separates contaminated and clean sides to support infection control and prevent cross-contamination. Constructed with an SUS304 stainless steel inner drum and a heavy-duty frame, the KS-BW50 is suitable for continuous-duty operation and integrates an intelligent microprocessor control for repeatable, programmable wash cycles. Available with electric or steam heating, the machine offers configurable extraction speeds and optimized water and steam consumption for facility workflows.

Key Features

• SUS304 stainless steel inner drum
• Barrier wall (pass-through) design to separate contaminated and clean laundry areas
• Intelligent microprocessor control system with programmable cycles
• Configurable extraction speeds for uniform distribution and high-speed extraction
• Electric or steam heating options
• Designed for continuous-duty operation in healthcare and commercial laundry environments

Technical Specifications

• Model: KS-BW50
• Nominal Capacity: 50 kg
• Inner Drum Size: Ø970 × 680 mm
• Motor Power: 5.5 kW
• Wash Speed: 35 RPM
• Uniform Distribution Speed: 70 RPM
• Mid Extraction Speed: 400 RPM
• High Extraction Speed: 700 RPM
• Heating Method: Electric / Steam
• Electric Heating Power: 24 kW
• Steam Pipe Diameter: Ø25 (DN20)
• Water Pipe Diameter: Ø50 (DN40)
• Drain Outlet: Ø89 mm
• Water Inlet Pressure: 0.2–0.3 MPa
• Steam Pressure: 0.4–0.6 MPa
• Compressed Air Pressure: 0.4–0.6 MPa
• Water Consumption: 650 kg per Cycle
• Steam Consumption: 45 kg per Cycle
• Power Supply: 380 V / 3 Phase / 50 Hz
• Machine Dimensions: 1500 × 1450 × 1950 mm
• Net Weight: 1,450 kg
• Technical Note: Steam parameters apply only to steam-heated models.
