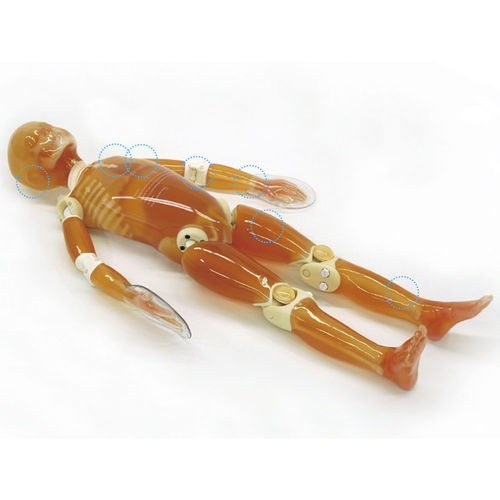

CT scan test phantom "PBU-70B"

whole bodypediatric

Improve skills in detecting bone fractures in children and cultivate awareness of child maltreatment. Features - 1. Training in pediatric radiography can be enriched with clear and subtle bone fractures 2.Typical fractures resulting from child abuse are also included Training skills / Applications - Plain X-ray Basic patient positioning Case / Pathology - Signs of callus / Supracondylar humerus fracture / Back, scapula and rib fractures/ Skull fractures Set includes - 1 pediatric whole body phantom / 1 head supporter / 1 hand fixture belt / 1 screw driver / 1 set of sample X-ray data(DVD) / manual Height (approx.) - 110 cm / 43.3 in Packing size (approx.) - W86 x D60 x H32cm / W33.9 x D23.6 x H12.6in Weight (approx.) - 20kg / 44lb Packing weight (approx.) - 25kg/ 55lb , 44kg /97lb Materials - Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31) / Skull: epoxy resin (density:1.11) *Phantom has no metal parts or liquid structure
