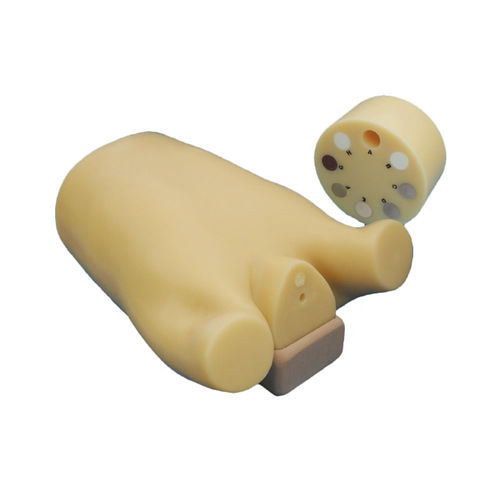

CT scan test phantom PH-8

lung

Chest phantom for standardization studies in low dose lung cancer CT screening / Anthropomorphic structure provides life-like images allowing operators visual evaluation Features - 1. Simulated GGO type tumors with different sizes and HU numbers are prepared in the vicinity of three main sections of bilateral lungs 2. Dosimeter holder on the central axis of the phantom allows housing a pencil type ion chamber. 8 step cylindrical linearity phantom to control density curve as a scale can be attached to the chest phantom base. Set includes - 1 chest phantom / 1 8 step linearity phantom / 2 urethane cylinder / 1 adjustment base / 1 set of sample images / manual Size (approx.) - 胸囲93cm　高さ45cm Packing size (approx.) - W63 x D50 x H29cm / W24.8 x D19.7 x H11.4in Weight (approx.) - 18kg Materials - Chest wall: human tissue substitute / Bones: synthetic bones / Alveoli: styrene foam and urethane foam Optional parts - 41363-020 Carrying case for PH-1
