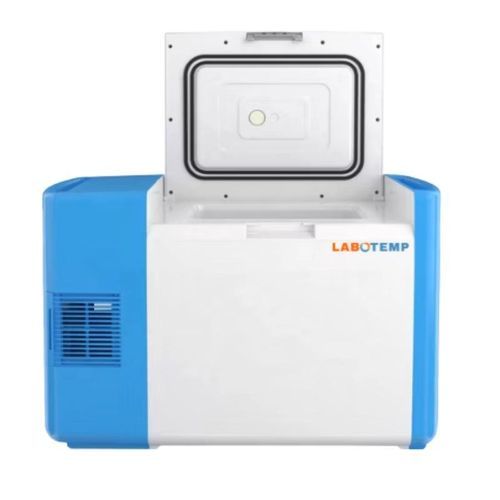

Biomedical freezer BPF-01

for vaccinesfor hospitalsfor blood plasma

Product overview
Labotemp Biomedical Freezer BPF-01 is a compact biomedical and plasma freezer for reliable cold storage of vaccines, reagents and biological samples. With a 25 L stainless-steel chamber and an adjustable internal temperature range from 0°C to -25°C, it supports clinical, laboratory and field applications requiring controlled low-temperature preservation.

Design and operation
The unit uses a SECOP compressor in a single-compressor refrigeration system and an EBM condenser fan to deliver consistent cooling with low power draw (input 60 W, consumption 1.1 kWh/24h). Electronic temperature control with digital display and a PTC probe enables accurate monitoring. Audible and visual alarms signal high/low temperature events. The top-opening design and compact external dimensions allow easy access and installation where space is limited.

Why choose Labotemp Biomedical Freezer BPF-01?

• Precise temperature control for sensitive medical samples and plasma
• Low energy consumption with fluorine-free refrigerant
• Integrated alarms and durable hygienic interior for clinical use

Features

• Portable -25°C capable design
• SECOP compressor
• Single-compressor refrigeration with fluorine-free refrigerant
• Electronic temperature control with digital display
• PTC probe for accurate measurement
• EBM condenser fan
• PE exterior — lightweight and corrosion-resistant
• 304 stainless steel interior for hygiene
• Top-opening door for convenient access
• 100 mm foaming insulation for thermal stability
• Audible and visual alarm for temperature deviations

Applications

• Portable cold storage of vaccines, medicines and biological samples in hospitals, clinics and research labs
• Field research and transport requiring stable low-temperature performance

Technical specifications

• Model: BPF-01
• Capacity: 25 L
• Internal temperature: 0°C to -25°C, adjustable
• Compressor: SECOP
• Voltage: 220V/50Hz, 110V/60Hz or DC12/24V
• Alarm: Audible and visual
• Input power: 60 W
• Power consumption: 1.1 kWh/24h
• Protect Grade: I/B
• Climate type: N
• Refrigerant: Fluorine-free environmental refrigerant
• Refrigeration system: Single compressor
• Temperature control: Electronic
• Temperature display: Digital
• Probe: PTC
• Condenser fans: EBM
• Exterior material: PE (polyethylene)
• Interior material: Stainless Steel 304
• Thickness of foaming layer: 100 mm
• Balance hole: 1 (Diameter 18 mm)
• Door type: Top open
• Net weight / Gross weight: 21 / 32 kg
• External dimensions: 780 × 410 × 515 mm
• Internal dimensions: 327 × 220 × 305 mm
• Package size: 860 × 490 × 680 mm
