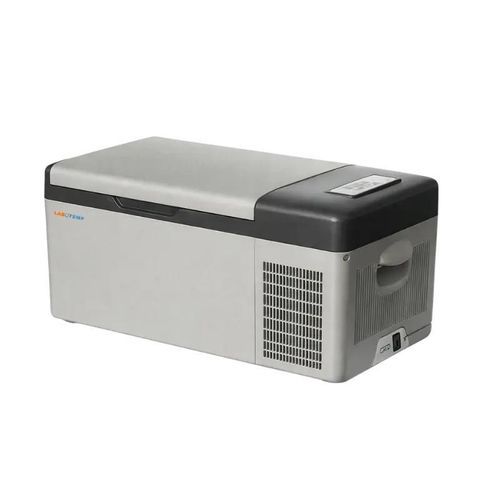

Biomedical freezer BPF-01A

for vaccineslaboratoryfor clinical laboratories

Overview
The Labotemp Mini Biomedical Freezer BPF-01A is a compact, field-ready cold storage solution for transport and short-term preservation of vaccines, medicines, biological samples and other temperature-sensitive materials. Capacity: 15 L. Temperature range: -20°C to +20°C. Designed for clinics, ambulances, field research and pharmaceutical logistics requiring a reliable portable cold chain unit.

Design and Portability
Compact and lightweight (net weight 8.6 kg) with external dimensions 598 × 320 × 260 mm. Supports AC 110/220V and DC vehicle power and includes an integrated rechargeable lithium battery to maintain operation during transit. A USB port is provided to charge auxiliary devices during field operations.

Key benefits

• Flexible power: AC 110/220V, vehicle DC and internal rechargeable battery for continuous mobile use.
• Rapid cooling to -20°C in a compact 15 L format to protect the cold chain during transport and outreach.
• Practical form factor and USB charging for auxiliary device support in the field.

Features

• Multi-alarm protection for temperature deviations.
• Wide temperature range: -20°C to +20°C.
• Multi-power compatibility: AC and vehicle DC operation.
• Integrated rechargeable lithium battery for uninterrupted operation in transit.
• Fast-cooling mechanism for quick temperature stabilization.
• Durable exterior suitable for frequent handling and mobility.
• User-friendly controls for temperature setting and monitoring.
• Low power consumption: 60 W.
• Lightweight construction for easy transport (net weight 8.6 kg).
• USB interface for auxiliary device charging during field use.
• Stable performance across a range of ambient conditions.

Applications

• Mobile cold chain for transport of vaccines, insulin, reagents and diagnostic samples.
• Use in ambulances, field research, clinics and pharmaceutical logistics for temperature-controlled transport.
• Laboratories requiring a compact portable solution from -20°C to +20°C.

Technical specifications

• Temperature range: -20°C to +20°C
• Capacity: 15 L
• External size (W×D×H): 598 × 320 × 260 mm
• Voltage / Frequency: AC 110/220V ±10%, 50/60Hz
• Power consumption: 60 W
• Net weight (N.W.): 8.6 kg
• Gross weight (G.W.): 9.6 kg
• Shipping size (W×D×H): 615 × 365 × 315 mm
• Rechargeable lithium battery: Yes
• USB charging port: Yes
