Vaccine freezer BPF-08

hospitalblood bankfor blood plasma

Product overview

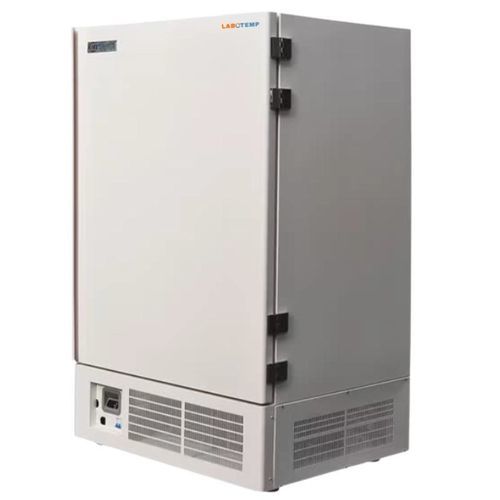

Labotemp Biomedical and Plasma Freezer BPF-08 is a high-capacity ultra-low biomedical and plasma freezer engineered for precise and reliable low-temperature storage in laboratories, hospitals, and research facilities. It offers an adjustable internal temperature range from -25°C to -60°C and a 408 L chamber for stable preservation of plasma, vaccines, reagents, and biological samples. The interior is made of stainless steel 304 for hygienic, corrosion-resistant storage, and the unit features 150 mm thick insulation to enhance thermal retention and minimize temperature fluctuations.

Design and operation
Designed for demanding applications, the BPF-08 integrates a high-efficiency SECOP compressor, EBM condenser fans for uniform airflow, and electronic temperature control with a digital display (LCD touchscreen optional). It supports PTC probe temperature sensing and includes audible and visual alarms for safety and monitoring. The refrigeration system uses a fluorine-free environmental protection refrigerant and a single-compressor refrigeration system for energy-efficient operation.

Key features

• 408 L large-capacity chamber for large-scale sample storage
• Adjustable internal temperature range: -25°C to -60°C
• SECOP compressor and EBM condenser fans for efficient and stable cooling
• Stainless Steel 304 interior and liner for hygiene and corrosion resistance
• 150 mm thick foaming insulation layer for superior temperature retention
• Electronic temperature control with digital display; optional LCD touch screen
• PTC probe for temperature measurement
• Integrated audible and visual alarm system for temperature deviations and system faults
• Optional accessories: data recorder, USB interface, remote monitoring
• Energy-efficient design; fluorine-free refrigerant

Applications

• Biomedical laboratories and clinical settings
• Hospitals for plasma and vaccine storage
• Research institutions requiring long-term storage of temperature-sensitive biological samples, reagents, and vaccines

Technical specifications

• Model: BPF-08
• Capacity: 408L
• Internal temperature: -25°C to -60°C, adjustable
• Compressor: SECOP
• Voltage: 220V/50Hz
• Alarm: Audible and visual alarm
• Input Power: 650W
• Power consumption: 9.2 kw.h/24h
• Protect Grade: I/B
• Climate type: N
• Refrigerant: Fluorine free environmental protection refrigerant
• Refrigeration system: Single compressor refrigeration system
• Temperature control: Electronic temperature control
• Temperature display: Digital display (LCD touch screen optional)
• Probe: PTC
• Condenser fans: EBM
• Exterior Material: Powder coated steel plate
• Interior Material: Stainless Steel 304
• Liner: Stainless Steel 304
• Thickness of foaming layer: 150mm
• Number of shelves / inner doors: 3 shelves / 4 inner doors, 304 stainless steel
• Castor: 4
• Net weight / gross weight: 200/240kg
• External dimensions: 930*900*1780mm
• Internal dimensions: 610*615*1120mm
• Package size: 930*1060*2010mm
