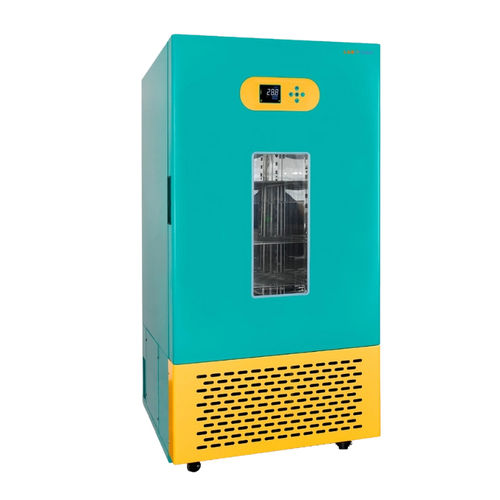

Biochemistry incubator BCI-01

forced convectionforced airfor scientific research

Overview
Labotemp Biochemical Incubator BCI-01 is a precision culture incubator engineered for stable temperature control and reliable bacterial, fungal and plant tissue cultivation. Used in environmental testing, clinical labs, universities, and industrial quality control, it delivers automatic cooling/heating regulation with forced-air convection for fast response, ±0.5°C fluctuation, ±1°C uniformity, 0.1°C display resolution and timer control (1–9,999 min). The SUS304 mirror-polished inner chamber, quick-release shelves and 25 mm test port simplify loading and sampling while the tempered double-door viewing window allows observation without disturbing internal conditions. The unit includes a microcomputer LCD controller (with temperature calibration), interior lighting, power socket, RS485 interface for data exchange, leakage protection and optional multi-segment programming. Refrigerant: R134a. Rated power: 600 W. Manufactured to ISO and CE standards.

Key features

• Microcomputer LCD controller with temperature calibration and timer (1–9,999 min)
• Forced-convection airflow for rapid, uniform temperature distribution
• Temperature fluctuation ±0.5°C and uniformity ±1°C; resolution 0.1°C
• SUS304 stainless-steel inner chamber with interior lighting and mirror polish (hygienic design)
• Quick-release shelves (standard 2, expandable to 6) for easy adjustment
• Double-door with tempered viewing glass to observe samples without disturbing conditions
• Cold-rolled steel outer body with rust-resistant coating and high-quality insulation
• Heat-resistant silicone sealing strips
• Automatic cooling & heating with sensitive sensors
• Safety features: leakage protection and auxiliary temperature control
• RS485 communication interface for data exchange/monitoring
• 25 mm test port for sampling

Applications

• Water analysis and BOD testing
• Microbial culture and microorganism preservation
• Plant tissue cultivation, seed breeding and agricultural research
• Environmental and pharmaceutical/drug testing laboratories
• Universities, clinical laboratories and industrial quality control

Caractéristiques / Spécifications techniques

• Temperature Range: 0–80°C
• Volume: 80L
• Power Supply: AC 220V, 50Hz
• Rated Power: 600W
• Inner Dimension (W×D×H cm): 45×40×45
• Overall Dimension (W×D×H cm): 62×65×95
• Temperature Fluctuation: ±0.5°C
• Temperature Uniformity: ±1°C
• Temperature Resolution: 0.1°C
• Timer Range: 1–9999 min
• Refrigerant: R134a
• Shelves (Std/Max): 2 / 6 pcs
• Door Type: Single (double-door with tempered viewing glass)
• Net Weight: 71kg
• Gross Weight: 85kg
