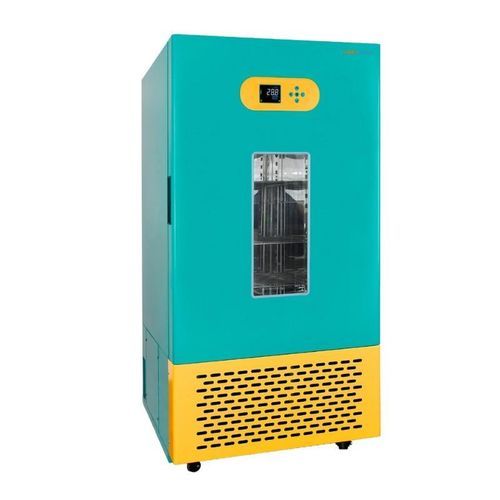

Biochemistry laboratory incubator BCI-03

forced convectionforced airfor microbiology

Product overview
Labotemp BCI-03 is a biochemical culture incubator designed for stable temperature control and reproducible incubation of microorganisms, plant/tissue cultures and environmental samples. It supports long-term protocols in environmental testing, clinical and pharmaceutical labs, universities and industrial QC. Key control systems include microcomputer LCD control with calibration, automatic heating/cooling and forced-air convection for fast response.

Key benefits

• Precise thermal regulation: automatic heating/cooling, sensitive sensors, temperature fluctuation ±0.5°C and uniformity ±1°C
• Simple sampling and observation: 25 mm test port and tempered double-door viewing window
• Traceable operation: intelligent LCD controller with timer (1–9,999 min), calibration support and RS485 interface
• Practical handling: 800 L volume with quick-release shelves and interior lighting for easy loading
• Safety and reliability: leakage protection, auxiliary temperature control and industry-standard refrigerant R134a

Features

• 800 L capacity
• Inner chamber: SUS304 stainless steel, mirror-polished, with interior lighting
• Outer body: cold-rolled steel with anti-corrosion coating
• Quick-release adjustable shelves (Std/Max: 6 / 16 pcs)
• Forced-convection air circulation for uniformity
• Automatic cooling & heating with high-sensitivity sensors
• Intelligent microcomputer LCD controller with calibration and multi-segment programming (optional)
• 25 mm test port and tempered double-door viewing window
• Heat-resistant silicone sealing strips and high-quality insulation
• RS485 communication interface and safety protections (leakage protection + auxiliary temp control)

Specifications

• Temperature range: 0–80°C
• Temperature fluctuation: ±0.5°C
• Temperature uniformity: ±1°C
• Temperature resolution: 0.1°C
• Timer range: 1–9,999 min
• Volume: 800 L
• Inner chamber (W×D×H): 120 × 52 × 129 cm
• Overall dimension (W×D×H): 136 × 78 × 188 cm
• Power supply: AC 220 V, 50 Hz
• Rated power: 2400 W
• Refrigerant: R134a
• Net weight / Gross weight: 253 kg / 282 kg

Applications

• Water quality analysis and BOD testing
• Microbial culture and sample preservation
• Plant/tissue cultivation and seed-breeding experiments
• Environmental testing and pharmaceutical laboratories
• Agriculture, fisheries research and general scientific studies

Compliance & support

• ISO and CE compliance where applicable
• RS485 interface for data integration and process traceability
• Optional multi-segment programming for complex incubation cycles
• Factory calibration and service options available — contact supplier for details
