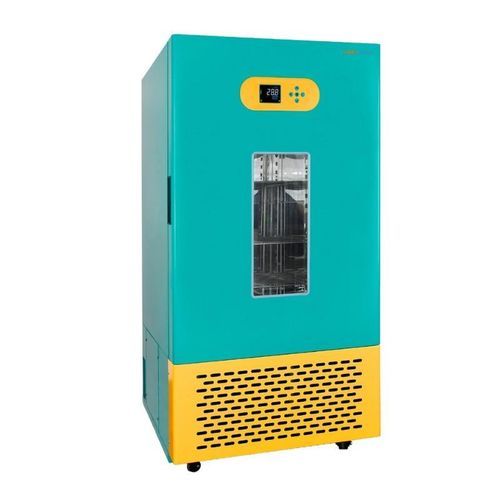

Forced convection laboratory incubator BCI-02

forced airfor microbiologyfor biochemistry

Overview
Labotemp Biochemical Incubator BCI-02 is a precision culture incubator with 380 L capacity designed for stable temperature control and reproducible incubation for microbial culture, BOD testing, plant and seed cultivation. It provides automatic heating and cooling with forced-air convection, temperature fluctuation ±0.5°C, uniformity ±1°C and display resolution 0.1°C. The SUS304 mirror-polished chamber, tempered double-door viewing window and 25 mm test port enable observation and sampling without disturbing internal conditions.

Control and Safety
The unit includes a microcomputer LCD controller with calibration and timer, RS485 communication interface, interior lighting and power socket, quick-release adjustable shelves and high-density silicone gaskets. Forced convection improves uniformity. Safety features include leakage protection, auxiliary over-temperature control and optional multi-segment programming for reproducible procedures.

Key benefits

• Stable incubation: automatic heating/cooling and forced airflow maintain consistent conditions.
• Practical monitoring: LCD controller, interior lighting and glass door simplify observation.
• Laboratory-grade construction: SUS304 chamber, heat-resistant sealing and safety protections for long service life.

Features

• Microcomputer LCD controller with calibration and timer
• Automatic heating and cooling (R134a) with sensitive sensors
• Forced-convection airflow for temperature uniformity
• SUS304 stainless-steel inner chamber with mirror finish and interior lighting
• Quick-release adjustable shelves (4 standard, up to 16)
• 25 mm test port for external sampling or probes
• RS485 communication interface
• Leakage protection and auxiliary over-temperature control
• Optional multi-segment programming
• Interior power socket and quick-release shelves for flexible use

Applications

• Water analysis and BOD testing
• Microbial culture and general microbiology
• Plant tissue culture and seed breeding
• Environmental and pharmaceutical testing laboratories
• Agriculture and aquaculture research
• Universities, research institutes and industrial quality control

Specifications

• Temperature range: 0–80°C
• Temperature fluctuation: ±0.5°C
• Temperature uniformity: ±1°C
• Temperature resolution: 0.1°C
• Timer range: 1–9999 min
• Heating & cooling: Automatic (R134a)
• Air circulation: Forced convection
• Chamber volume: 380 L
• Inner dimension (W × D × H): 58 × 54 × 122 cm
• Overall dimension (W × D × H): 74 × 70 × 172 cm
• Shelves (std/max): 4 / 16 pcs
• Door type: Double-door viewing window (tempered)
• Inner chamber material: SUS304 stainless steel
• Lighting: Interior lighting
• Test port: 25 mm
• Controller: Intelligent LCD controller with calibration
• RS485 interface: Yes
• Safety control: Leakage protection + auxiliary temperature control
• Power supply: 110 V / 220 V, 50/60 Hz
• Rated power: 1200 W
• Net weight: 154 kg
• Gross weight: 173 kg
