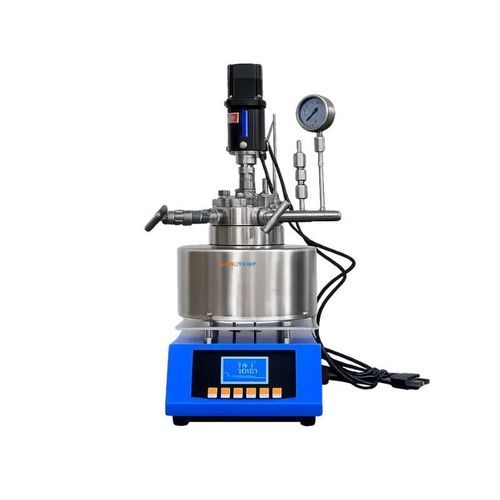

Thermoreactor HRA-09

Product Overview
Labotemp Hydrothermal Reactor Autoclave HRA-09 is a compact desktop high-pressure reactor combining internal magnetic stirring, secure high-pressure sealing and controlled heating for laboratory material synthesis, chemical reactions and small-scale R&D. The stainless-steel reactor body and modular heater enable reliable operation and convenient handling for routine high-pressure experiments.

Key Benefits

• Compact stainless-steel construction suited to laboratory benches and limited-space installations.
• Digital temperature and speed control for reproducible reaction conditions and process tracking.
• Magnetic stirring with top magnetic coupler and secure sealing to minimize leakage during high-pressure operation.

Features

• Leak-free operation with internal magnetic stirring
• Digital LCD display for temperature and stirring speed
• Precise heating control; external/module heating compatible
• Top magnetic coupler and high-power stirring motor
• Pressure gauge, temperature probe and needle gas inlet valve included
• Sampling valve and vent/deflation valve for controlled experiments
• Wetted parts in Hastelloy; valve material 316L stainless steel
• Quick separation of reactor body and heater for faster cooling

Applications

• Hydrothermal synthesis and nanomaterial preparation
• Catalyst development and chemical reaction studies
• Laboratory-scale R&D and process development
• Pharmaceutical research and academic experiments
• High-pressure reaction testing, sampling and monitoring

Technical Table
Filling Capacity: Maximum 80%
PPL Liner Temperature: Max. 220°C
PTFE Liner Temperature: Max. 180°C
Safety Pressure: 16 MPa
Recommended External Heating: Up to 300°C
Venting System: Deflation / Vent Valve
Sampling System: Sampling Valve
Gas Inlet: Needle Valve
Pressure Monitoring: Pressure Gauge
Temperature Monitoring: Temperature Probe
Stirring Drive: Top Magnetic Coupler
Valve Material: 316L Stainless Steel
Wetted Material: Hastelloy
Reactor Material: Stainless Steel Construction
Control System: Digital Temperature & Speed Control
Temperature Display: Digital LCD Display
Heating Method: External / Module Heating
Stirring Method: Internal Magnetic Stirring
Reactor Type: Desktop Magnetic Stirring High-Pressure Reactor
Package Size: 570x410x350mm
Gross Weight: 25kg

Technical Specifications

• Filling Capacity: Maximum 80%
• PPL Liner Temperature: Max. 220°C
• PTFE Liner Temperature: Max. 180°C
• Safety Pressure: 16 MPa
• Recommended External Heating: Up to 300°C
• Venting System: Deflation / Vent Valve
• Sampling System: Sampling Valve
• Gas Inlet: Needle Valve
• Pressure Monitoring: Pressure Gauge
• Temperature Monitoring: Temperature Probe
• Stirring Drive: Top Magnetic Coupler
• Valve Material: 316L Stainless Steel
• Wetted Material: Hastelloy
• Reactor Material: Stainless Steel Construction
• Control System: Digital Temperature & Speed Control
• Temperature Display: Digital LCD Display
• Heating Method: External / Module Heating
• Stirring Method: Internal Magnetic Stirring
• Reactor Type: Desktop Magnetic Stirring High-Pressure Reactor
• Package Size: 570x410x350mm
• Gross Weight: 25kg
