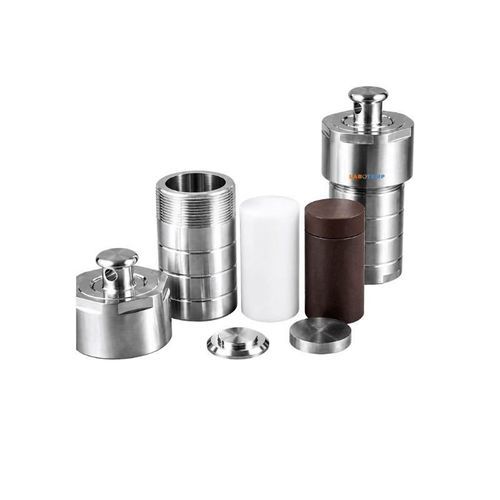

Hydrothermal reactor HRA-13

laboratoryfor scientific researchcompact

Overview
Labotemp Hydrothermal Reactor Autoclave HRA-13 is a 250 mL PTFE-lined pressure reactor for controlled hydrothermal reactions and laboratory pressure-digestion processes. It combines a 304 stainless-steel outer vessel with a chemically resistant PTFE liner, a threaded cap closure and a maximum rated pressure of ≤3 MPa.

Performance and Operation
The HRA-13 supports controlled heating with a PTFE maximum temperature of ≤220°C and an optional PPL configuration rated to ≤260°C. Temperature ramp rate is ≤5°C/min. Compact outer dimensions (107 × 205 mm) and a net weight of 6.1 kg make it suitable for benchtop laboratory workflows requiring a PTFE-lined reaction vessel.

Features

• Threaded cap tightening for secure closure
• 250 mL reaction capacity for laboratory-scale hydrothermal processes
• 304 stainless-steel outer vessel for structural integrity
• PTFE liner provides a chemically resistant reaction-contact surface
• PTFE liner internal size: 65 × 135 mm
• Maximum pressure rating: ≤3 MPa
• PTFE maximum temperature: ≤220°C; PPL maximum temperature (optional): ≤260°C
• Temperature rise/fall rate ≤5°C/min
• Rod specification: 8 × 200 mm (assembly component)
• Compact outer dimensions 107 × 205 mm; net weight 6.1 kg

Applications

• Hydrothermal synthesis: Laboratory-scale reactions under elevated temperature and pressure
• Pressure digestion: Sealed digestion and sample treatment workflows
• Materials research: Hydrothermal processing of materials at lab scale
• Chemical research: Controlled chemical reactions requiring PTFE-lined pressure vessels
• Catalytic hydrothermal reactions: Catalyst-based hydrothermal experiments
• Sample preparation: Treatment of samples requiring elevated temperature, pressure and chemical-resistant contact surfaces

General Specifications
Product Type: Hydrothermal Reactor Autoclave
Capacity: 250 mL
Vessel Material: 304 Stainless Steel
Liner Material: Polytetrafluoroethylene (PTFE)
Liner Size: 65 × 135 mm
Clamping Method: Threaded Cap Tightening
Rod Specification: 8 × 200 mm

Temperature & Pressure
Maximum Pressure: ≤3 MPa
PTFE Maximum Temperature: ≤220°C
PPL Maximum Temperature: ≤260°C
Temperature Rise and Fall Rate: ≤5°C/min

Physical Specifications
Outer Dimension: 107 × 205 mm
Net Weight: 6.1 kg

Technical specifications

• Model: HRA-13
• Brand: Labotemp
• Reaction Capacity: 250 mL
• Vessel Material: 304 Stainless Steel
• Liner Material: PTFE (Polytetrafluoroethylene)
• Liner Size: 65 × 135 mm
• Clamping Method: Threaded Cap Tightening
• Rod Specification: 8 × 200 mm
• Maximum Pressure: ≤3 MPa
• PTFE Maximum Temperature: ≤220°C
• PPL Maximum Temperature (optional): ≤260°C
• Temperature Rise/Fall Rate: ≤5°C/min
• Outer Dimensions: 107 × 205 mm
• Net Weight: 6.1 kg
• Standard Accessory: PTFE liner
• Optional Accessory: PPL liner
