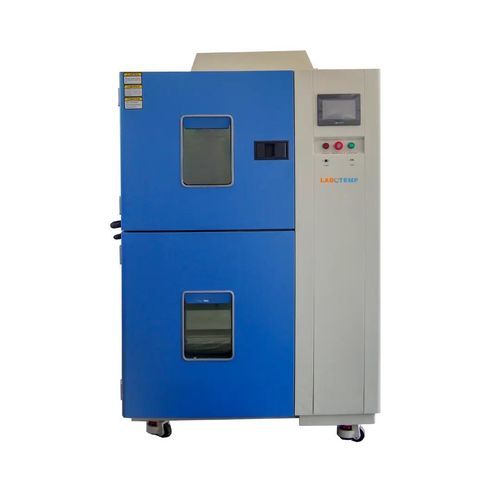

Thermal shock test chamber LTC-101

thermostaticclimatictemperature

Overview
Labotemp Thermal Shock Chamber LTC-101 is a two-zone thermal shock test chamber engineered for rapid, reproducible temperature transitions. The test room supports -65°C to +200°C, the pre-heat chamber up to +220°C and the pre-cool chamber down to -75°C. Internal volume is 22 L (300 × 300 × 250 mm) with a maximum payload of 20 kg. The unit is intended for electronics, automotive components, aerospace parts, materials and assembly validation under controlled thermal shock cycles.

Key features

• Dual-zone design enabling fast transfers between extreme hot and cold environments
• Wide operating range for extreme condition simulation
• Rapid transition capability: heat to +200°C and cool to -70°C within 30 minutes
• Temperature control: fluctuation ±0.5°C; deviation ±3°C
• Fast temperature recovery within 5 minutes to shorten cycle time
• Mechanical compression refrigeration system with TECUMSEH compressor
• Programmable color LCD touchscreen controller with Ethernet and PC connectivity
• Interior: SUS304 stainless steel; Exterior: steel plate with protective coating
• Multiple safety protections: over-temperature, over-current, refrigerant high-pressure, earth leakage

Applications

• Reliability and durability testing of materials, components and assemblies under rapid temperature changes
• Quality assurance in electronics, automotive, aerospace and manufacturing
• R&D and accelerated environmental testing in laboratories

Specifications

• Test room – high temperature exposure range: Ambient +20°C to +200°C
• Test room – low temperature exposure range: -65°C to -5°C
• Pre-heat room – upper limit temperature: +220°C
• Pre-cool room – lower limit temperature: -75°C
• Temperature fluctuation: ±0.5°C
• Temperature deviation: ±3°C
• Temperature recovery time: within 5 minutes
• Pre-heat room – heating time: Ambient to +200°C within 30 minutes
• Pre-cool room – cooling time: Ambient to -70°C within 30 minutes
• Cooling system: mechanical compression refrigeration
• Refrigerating unit: TECUMSEH compressor
• Controller: programmable color LCD touch screen, Ethernet connection, PC link
• Loading capacity: 20 kg
• Interior volume: 22 L
• Internal dimensions (mm): 300 × 300 × 250
• Overall dimensions (mm): 1560 × 870 × 1545
• Interior material: SUS304 stainless steel
• Exterior material: steel plate with protective coating
• Net weight: 635 kg
• Gross weight: 750 kg
• Package size (mm): 1470 × 2440 × 2600
