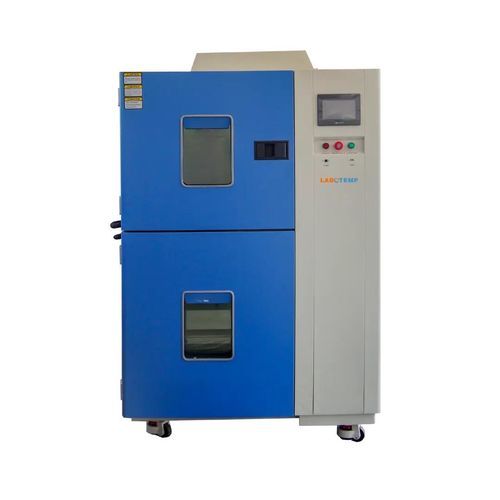

Climate chamber LTC-102

temperaturethermal shocklaboratory

Product overview
Labotemp LTC-102 is a two-zone thermal shock chamber designed for controlled, repeatable evaluation of components and assemblies exposed to rapid temperature transitions. The unit provides a wide test range with a pre-heat upper limit of +220°C and pre-cool lower limit down to -75°C, suitable for industrial R&D and quality control in electronics, automotive, aerospace and materials testing.

Key benefits

• Accurate and repeatable thermal shock cycles for reliable durability assessment
• Stable temperature control with low fluctuation for consistent test conditions (±0.5°C)
• Industrial-grade components and multi-layer safety protections for continuous operation

Features

• Two-zone design (test room and pre-heat/pre-cool room) for rapid transfer between temperature extremes
• Fast temperature recovery: within 5 minutes
• Wide test-room range: -65°C to +200°C (specifications detail test-room and pre-room ranges)
• Pre-heat upper limit +220°C and pre-cool lower limit -75°C
• Programmable color LCD touch controller with Ethernet and PC link for test program management
• Mechanical compression refrigeration with TECUMSEH compressor
• Stainless steel (SUS304) interior and protective coated steel exterior
• High-precision control (±0.5°C) and comprehensive safety devices (over-temperature, over-current, high-pressure, leakage)

Applications

• Durability and stability testing of large or multiple components under rapid temperature changes
• Suitable for electronics, automotive, aerospace, industrial manufacturing, R&D and accelerated life testing
• Quality control labs requiring programmable cycles and Ethernet/PC connectivity

Specifications (summary)
Test room – High temperature exposure range: Ambient +20°C to +200°C
Test room – Low temperature exposure range: -65°C to -5°C
Pre-heat room – Upper limit temperature: +220°C
Pre-cool room – Lower limit temperature: -75°C
Temperature fluctuation: ±0.5°C
Temperature deviation: ±3°C
Temperature recovery time: Within 5 minutes
Pre-heat room – Heating time: Ambient to +200°C within 30 minutes
Pre-cool room – Cooling time: Ambient to -70°C within 30 minutes
Cooling system: Mechanical compression refrigeration
Refrigerating unit: TECUMSEH compressor
Controller: Programmable color LCD touch screen; Ethernet; PC link
Loading capacity: 30–40 kg (approx.)
Interior volume (table): ~340 L
Interior volume (marketing-stated): 72 L
Internal dimensions (mm): ~600 × 600 × 950
Overall dimensions (mm): ~1900 × 1200 × 1900
Safety devices: Over-temperature, over-current, high-pressure, leakage protection
Interior material: SUS304 stainless steel
Exterior material: Steel plate with protective coating

Additional product information
Manufacturer data indicate a larger interior volume (~340 L in specification table) while marketing text lists 72 L; loading capacity is approximately 30–40 kg depending on specimen size and configuration. Controller supports programmable sequences, Ethernet connection and PC link. System uses mechanical compression refrigeration with a TECUMSEH compressor and multiple safety protections for lab and industrial use.

Technical specifications

• Model: LTC-102
• Test room high range: Ambient +20°C to +200°C
• Test room low range: -65°C to -5°C
• Pre-heat upper limit: +220°C
• Pre-cool lower limit: -75°C
• Temperature fluctuation: ±0.5°C
• Temperature deviation: ±3°C
• Temperature recovery time: Within 5 minutes
• Heating time (pre-heat): Ambient to +200°C within 30 minutes
• Cooling time (pre-cool): Ambient to -70°C within 30 minutes
• Cooling system: Mechanical compression refrigeration
• Compressor: TECUMSEH
• Controller: Programmable color LCD touch screen; Ethernet; PC link
• Loading capacity: 30–40 kg (approx.)
• Interior volume (table): ~340 L; (marketing-stated): 72 L
• Internal dimensions (mm): ~600 × 600 × 950
• Overall dimensions (mm): ~1900 × 1200 × 1900
• Safety devices: Over-temperature, over-current, high-pressure, leakage protection
• Interior material: SUS304 stainless steel
• Exterior material: Steel plate with protective coating
