Thermostatic test chamber SDC-01

climatichumiditytemperature

Product Overview

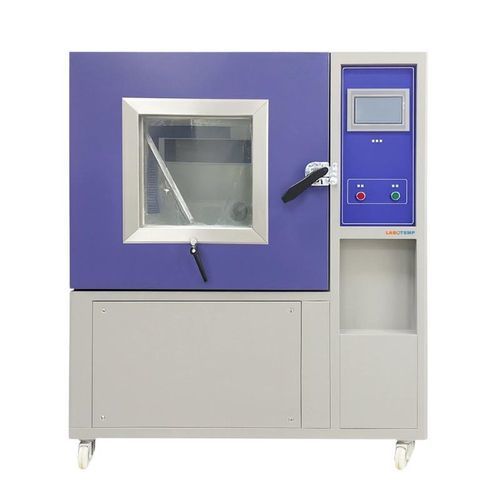

Labotemp Sand Dust Test Chamber SDC-01 is a precision environmental test chamber designed to reproduce floating and flowing dust conditions for reliable evaluation of electronics, automotive, telecom, solar, aerospace and industrial components. The unit offers controlled test temperature of 20°C ±15°C, humidity range 45%–85% RH and programmable time control from 0 to 999 seconds to ensure repeatable sand and dust testing.

Intended users and compliance
This chamber is suited to manufacturers, R&D laboratories and quality control facilities requiring standardized dust exposure and IP protection verification. The SDC-01 meets CE and ISO 13485 standards for safety and traceability.

Why choose Labotemp Sand Dust Test Chamber SDC-01

• Accurate dust simulation: independent flowing modes with integrated vibration deliver uniform particle exposure.
• Repeatable testing: programmable time and humidity controls for consistent results.
• Certified reliability: CE and ISO 13485 compliance for regulated testing environments.

Features

• Precision dust chamber construction
• High-performance dust spray system with selectable dust modes
• Built-in vibration system to maintain stable dust concentration
• Precision dust collector for accurate measurement and monitoring

Applications

• Validation and qualification of electronics, telecom, solar, automotive, aerospace and industrial products under dusty conditions
• Assessment of dust ingress resistance and sealing performance for IP rating verification
• Support for product development, quality assurance and certification testing

Optional Accessories

• Vacuum system

Technical specifications

• Test Temperature: 20°C ±15°C
• Maximum power consumption: AC220V 5KW
• Test humidity: 45% – 85% RH
• External dimensions (W×D×H): 105×100×160 cm
• Internal dimensions (W×D×H): 60×60×60 cm
• Time control: 0–999 sec
• Net Weight: 240 kg
• Gross Weight: 280 kg
