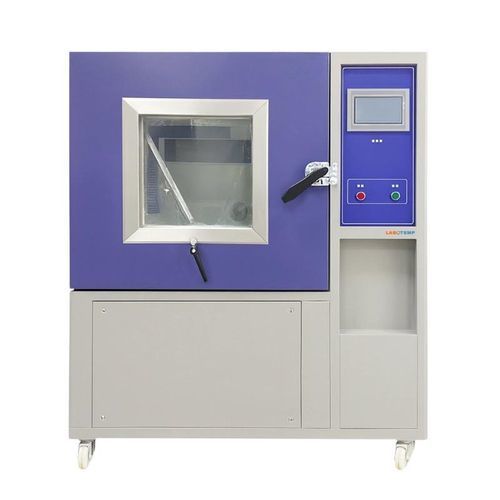

Climate chamber SDC-02

humiditytemperaturedust

Product overview
Labotemp Sand Dust Test Chamber SDC-02 is a laboratory-grade test enclosure for evaluating dust ingress and sealing performance of automotive, electronics, telecom, solar, aerospace and industrial components under controlled floating (F) and flowing (C) dust conditions. The chamber integrates a selectable high-performance dust spray system, an internal vibration module for uniform dust distribution and a precision dust collector for repeatable results. The SDC-02 supports verification to IEC 60529 (IP5X / IP6X) and is supplied with CE and ISO 13485 declarations.

Intended use and environment
Built for R&D and quality control labs, production validation and certification testing. The SDC-02 is operated via laboratory-grade controls and programmable timing to ensure reproducible cycles. Typical operating ranges: test temperature 20°C ±15°C and test humidity 45%–85% RH. Electrical supply and installation requirements should follow the technical data below.

Key features

• High-performance dust spray system with selectable floating (F) and flowing (C) dust modes
• Built-in vibration system to maintain stable, uniform dust concentration
• Precision dust collector for accurate and repeatable measurements
• Programmable time control (0–999 s table; feature list notes 0–9999 s Smart Timer)
• Laboratory-grade controls suitable for IP protection verification and certification workflows
• Compliance references: IEC 60529 (IP5X/IP6X), CE, ISO 13485 (as stated)

Applications

• Automotive components: instrument panels, door locks, gear shafts — sealing and operability tests
• Electronics & telecom: sensors, enclosures, connectors — dust ingress and functional verification
• Solar and aerospace components requiring dust-resistance validation
• Industrial parts and assemblies exposed to dusty environments

Specifications
Model: SDC-02
Manufacturer: Labotemp
Test temperature: 20°C ± 15°C
Test humidity: 45% ~ 85% RH
Time control: 0 - 999 sec (table); features list indicates 0–9999 sec Smart Timer
Maximum power consumption: AC220V 50Hz 5KW
External dimensions (W×D×H): 125×120×180 cm
Internal size (W×D×H): 80×80×80 cm
Net weight: 280 kg
Gross weight: 370 kg
Package size: 1380×1350×2020 mm

Additional notes

• Optional accessories: vacuum/extraction system for enhanced dust handling
• Use recommended dust types and concentrations per applicable test standards
• Verify local electrical supply and site requirements prior to installation
