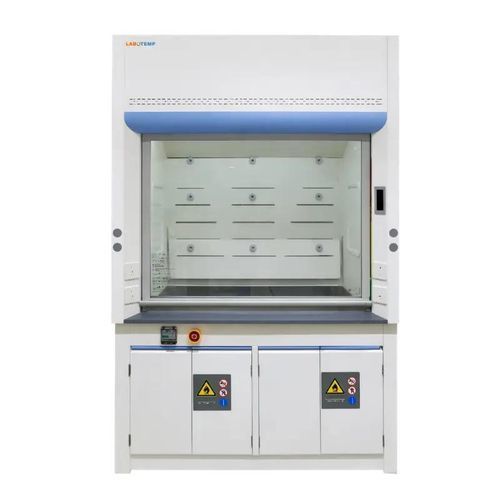

Exhaust fume hood LFH-01

chemicalfor hazardous materialslaboratory

Product Overview
Labotemp Ducted Fume Hood LFH-01 is a duct-connected laboratory fume hood designed to capture and exhaust hazardous fumes and vapors to an external ventilation system. It is intended for chemical handling, reactions, sample preparation and testing where controlled airflow (≥ 0.50 m/s) and continuous operation are required.

Construction & Usability
The LFH-01 features a corrosion-resistant cold-rolled steel body with a chemical-resistant work surface and a toughened glass sash. Integrated LED illumination and a touch control panel allow adjustment of airflow and functions. Electrical safety is ensured by grounding and built-in protection against overload and leakage. The unit is engineered for low vibration and reduced noise during prolonged use.

Why Choose LFH-01

• Ducted exhaust: designed for reliable removal of toxic, flammable or reactive fumes to an external ducting system.
• Manufacturer credentials: Labotemp equipment produced under ISO 13485:2016 and CE certification.
• Durable materials: corrosion-resistant powder-coated steel and chemical-resistant worktop for laboratory environments.

Features

• Corrosion-resistant construction.
• Powder-coated steel body for extended service life.
• Chemical-resistant work surface suitable for aggressive reagents and solvents.
• Toughened glass sash for clear visibility and safe operation.
• User-friendly touch control interface for airflow and settings.
• Integrated LED illumination for workspace clarity.
• Low vibration and reduced noise operation.
• Built-in electrical safety mechanisms for overload and leakage protection.
• Lab-grade power socket for auxiliary instruments.
• Modular internal design for easy cleaning and maintenance.
• Optimized exhaust structure for improved ventilation efficiency when connected to external ducting.
• Designed for continuous operation in controlled indoor laboratory environments.

Optional Accessories

• Fan accessories: air valve, exhaust fan, air duct (2 pcs per set), bends (2 pcs per set), additional duct bends.

Applications

• Safe handling and exhaust of volatile, toxic and flammable gases in ducted laboratory setups.
• Chemical reactions, sample preparation and toxicology testing in pharmaceutical, academic and industrial laboratories.
• Laboratory environments requiring controlled inlet airflow (≥ 0.50 m/s), low noise and electrical safety compliance.

Technical specifications

• Ambient Temperature: 15°C ~ 35°C
• Power Supply: AC 220 ±22V, 50Hz
• Relative Humidity: ≤ 75%
• Atmospheric Pressure: 70 kPa ~ 106 kPa
• Inlet Wind Speed: ≥ 0.50 m/s
• Vibration Amplitude: ≤ 5 µm (rms) (10Hz–10kHz)
• Noise Measurement Condition: Measured at center, 300 mm outward & 380 mm above work surface, ambient ≤ 50 dB
• Withstand Voltage: 1500 V
• Ground Resistance: ≤ 0.1 Ω
• Topper cabinet dimensions: 1200 x 850 x 1500 mm
• Down cabinet dimensions: 1200 x 850 x 850 mm
• Duct dimension: 4000 x 315 x 315 mm
• Net weight: 450 kg
• Gross weight: 530 kg
