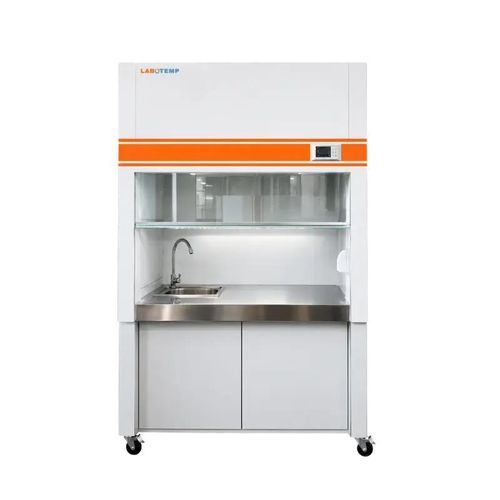

Exhaust fume hood LFH-02

for teachingcontainmentchemical

Overview
Labotemp Ducted Laboratory Fume Hood LFH-02 is designed for controlled removal of hazardous fumes, vapors and airborne contaminants in chemical, pharmaceutical and research laboratories. The ducted exhaust provides adjustable face velocity (0.25–0.45 m/s) to maintain a protected workspace. Integrated utilities (water, gas, electrical) and a stainless steel work surface support routine and advanced laboratory workflows.

Construction and key components
The LFH-02 features an all-steel cabinet with a corrosion-resistant stainless steel work surface and a vertically sliding tempered glass sash for operator visibility and protection. Built-in sink with drainage, UV lamp, multifunction power sockets and a low-noise exhaust fan provide practical functionality and easy maintenance.

Why choose Labotemp Ducted Fume Hood LFH-02?

• Efficient fume containment: Ducted exhaust and adjustable airflow reduce operator exposure to hazardous vapors.
• Industrial-grade construction: All-steel body and stainless steel work area improve chemical resistance and simplify cleaning.
• Manufacturer support: Labotemp provides laboratory-grade equipment suitable for research, pharmaceutical and industrial testing environments.

Features

• Adjustable airflow
• Heavy-duty all-steel construction
• Face velocity 0.25–0.45 m/s (adjustable)
• Integrated water, gas and electrical outlets
• Multifunction laboratory power sockets
• Vertically sliding tempered glass sash
• Low-noise exhaust fan
• Stainless steel sink with drainage
• Quick-opening water valve
• Spacious work area
• Smooth interior surfaces for easy cleaning
• Stable airflow design for operator protection
• Designed for continuous operation

Applications

• Exhaust of hazardous chemical fumes and vapors during laboratory experiments
• Chemical preparation, titration, synthesis and analytical testing requiring ducted ventilation
• Pharmaceutical, biotechnology and environmental laboratories handling volatile reagents
• Academic teaching laboratories performing routine chemical work
• Sample preparation involving acids, solvents and corrosive chemicals

Technical specifications

• Face Velocity: 0.25–0.45 m/s (Adjustable)
• Intake Pressure: >0.5 Pa
• Maximum Power: 400 W
• UV Lamp: 28 W × 1
• Body Construction: All Steel
• Front Sash: Vertically Sliding Tempered Glass
• Sink Material: Stainless Steel
• Water System: Integrated Water Tap
• Gas System: Integrated Gas Tap
• Ventilation System: Ducted Exhaust System
• Power Supply: AC Single Phase, 220V, 50Hz
• Working Area (W × D × H): 1030 × 660 × 680 mm
• Overall Dimensions (W × D × H): 1200 × 740 × 1950 mm
• Packaging Dimensions (W × D × H): 1290 × 830 × 2030 mm
• Net Weight: 150 kg
• Gross Weight: 195 kg
