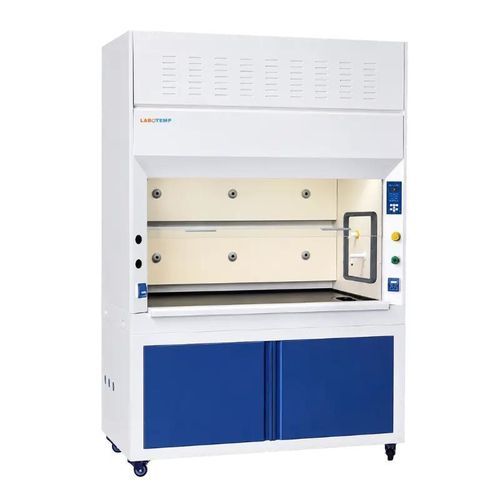

Product overviewLabotemp ducted chemical fume hood LFH-103 captures and safely exhausts hazardous fumes, vapors, gases and aerosols through an external duct to protect personnel and the laboratory environment. The unit features a corrosion‑resistant work surface, a manual tempered-glass sash with front bypass, an adjustable face velocity and a built-in variable-speed centrifugal blower for stable negative-pressure ventilation suitable for research, QC and production environments.
Key features- Adjustable face velocity: 0.3–0.8 m/s (negative-pressure ventilation)
- Microprocessor controller with LCD for real-time monitoring, airflow adjustment and memory protection
- Integrated UV sterilization lamp (20 W × 1) and LED work light (8 W × 1)
- Built-in variable-speed centrifugal blower for stable, adjustable airflow
- Corrosion-resistant solid physico‑chemical work surface (phenolic/compact laminate)
- Electro-galvanized steel cabinet with antimicrobial powder coating
- Tempered 5 mm manual sash with front bypass airflow system
- Waterproof sockets and integrated gas and water taps in the work area
- Illumination ≥900 Lux; sound emission ≤68 dB(A)
- Power consumption: 400 W; Power supply: AC 220V/110V, 50/60 Hz
Applications- Chemical research and analytical labs handling reactions that produce hazardous fumes
- Pharmaceutical manufacturing and QC for safe chemical preparation and formulation
- Industrial R&D and material testing involving corrosive chemicals and solvents
- Environmental testing labs for sample preparation with hazardous reagents
- Biotechnology and life‑science workflows requiring controlled ventilation and sterile conditions
- Food & beverage testing laboratories for chemical sample preparation and operator protection
Standard accessories- Base cabinet
- UV lamp and LED lamp
- Waterproof socket and sink
- Remote control valves for gas and water
Optional accessories- Activated carbon filter
- HEPA filter
- Air velocity sensor
Performance & operatingAirflow velocity: 0.3–0.8 m/s (adjustable)
Maximum sash opening: 520 mm
Work surface height: 850 mm
Control system: Microprocessor controller with LCD display
Illumination: ≥900 Lux
Sound emission: ≤68 dB(A)
Electrical systemUV lamp: 20 W × 1
LED lamp: 8 W × 1
Blower: Built-in centrifugal blower, speed adjustable
Power consumption: 400 W
Power supply: AC 220V/110V, 50/60 Hz
Construction & functionalCabinet exterior: Electro-galvanized steel with antimicrobial powder coating
Cabinet interior: Compact laminate with high acid and alkali resistance
Work surface: Solid physico‑chemical board, acid and alkali resistant
Front window: Manual sash, 5 mm tempered glass, height adjustable
External dimensions (W × D × H): 1040 × 800 × 2200 mm
Internal dimensions (W × D × H): 820 × 670 × 730 mm
Net weight: 208 kg
Gross weight: 286 kg
Package size (main body): 1190 × 990 × 1690 mm
Package size (base cabinet): 1190 × 990 × 900 mm
Technical specifications- Airflow velocity: 0.3–0.8 m/s (adjustable)
- UV lamp: 20 W × 1
- LED lamp: 8 W × 1
- Blower: Built-in centrifugal blower, speed adjustable
- Power consumption: 400 W
- Power supply: AC 220V/110V, 50/60 Hz
- Illumination: ≥900 Lux
- Sound emission: ≤68 dB(A)
- Maximum sash opening: 520 mm
- Work surface height: 850 mm
- Work surface material: Solid physico‑chemical board, acid and alkali resistant
- Cabinet exterior: Electro-galvanized steel with antimicrobial powder coating
- Cabinet interior: Compact laminate with excellent acid and alkali resistance
- Front window: Manual sash, 5 mm tempered glass, height adjustable
- External dimensions: 1040 × 800 × 2200 mm
- Internal dimensions: 820 × 670 × 730 mm
- Net weight: 208 kg
- Gross weight: 286 kg
- Package size (main body): 1190 × 990 × 1690 mm
- Package size (base cabinet): 1190 × 990 × 900 mm
