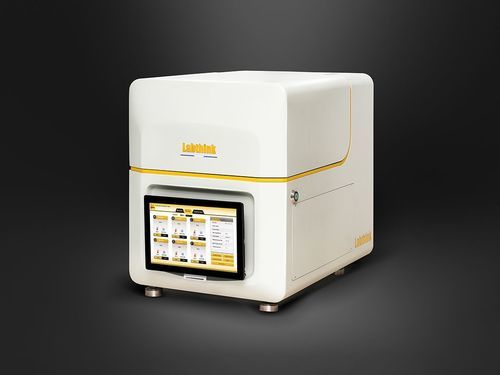

Diffusion testing system C106H

solubilitygas permeabilitypermeability

Overview

The C106H Gas Permeability Test System is a differential-pressure instrument for determining gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, composite films, high-barrier materials, sheets and metal foils across a range of temperatures. The system supports GB, ISO, ASTM and other international standards and is designed for laboratory and R&D use.

Product Features

• Accurate data
  • Dome-design test chamber with 360° air circulation constant-temperature technology for improved thermal stability.
  • High-precision imported vacuum sensor capable of accurately measuring ultra-high barrier materials in the 0.01–0.09 cm3/m2·24h·0.1MPa range.
  • Imported pneumatic control system and vacuum pump (down to 0.2 Pa) for low failure rate, high airtightness and automated vacuum control.
  • Automatic high-precision pressure compensation maintains constant pressure difference in the high-pressure chamber with fluctuation < 0.2 kPa.
  • High-pressure chamber pressure adjustable and maintainable between 10 kPa and 210 kPa.
• High efficiency
  • Six independent standard-area test cells (standard test area: 38.48 cm2) — simultaneous testing of six specimens under identical conditions with independent results.
  • Reduced test times for medium/low and high barrier materials (typically < 4 hours including vacuumization, depending on material).
  • Automatic specimen clamping for consistent clamping force and improved airtightness.
• Intelligent control
  • 12" touch tablet (Windows) for simplified operation; automatic test mode (input parameters then one-click start).
  • Automatic chamber cover with audible and visual alerts; intelligent sensors for operational safety.
• Safety and reliability
  • Dedicated industrial computer for system reliability and secure data storage; components from reputable suppliers.
• Space saving and modular functions
  • Compact footprint compared with traditional six-cell instruments; professional modes and customizable test ranges, including options for testing hazardous gases (H2, CH4) on request.

Test principle

The preconditioned specimen is mounted to form a sealed barrier between a high-pressure and a low-pressure chamber. The low-pressure chamber is evacuated, then test gas is introduced into the high-pressure chamber to create a controllable constant pressure differential. Gas permeation through the specimen is determined by analyzing pressure changes in the low-pressure chamber.

Standards

• ISO 15105-1
• ISO 2556
• GB/T 1038-2000
• ASTM D1434
• JIS K7126-1
• YBB 00082003

Applications

• Films: Measurement of gas transmission for plastic films, paper-plastic composite films, coextruded films, aluminized films, aluminium foil and aluminium-composite barrier films.
• Sheets: Testing of PP, PVC, PVDC sheets, metal foils, rubber pads, silicon wafers and other sheet materials.

Technical specifications

• Model: C106H
• Test range (cm3/m2·24h·0.1MPa): 0.01 – 50,000
• Resolution (permeability): 0.001 cm3/m2·24h·0.1MPa
• Test temperature: 15–50 °C (standard); 5–60 °C (optional)
• Temperature resolution: 0.01 °C
• Temperature fluctuation: ±0.15 °C
• Test humidity: 0% (standard); 5–90% ±2% (custom)
• Vacuum resolution: 0.01 Pa
• Vacuum accuracy: ±0.2% (1%–100% full scale)
• Chamber vacuum degree: ≤ 10 Pa
• Pressure control range: 10 kPa – 210 kPa (adjustable)
• Pressure fluctuation: 0.2 kPa
• Gas pressure (max): 79.7 PSI / 550 kPa
• Port size: Ø 6 mm (PU tube)
• Test cells: 6 independent cells
• Sample size: 4.6” × 4.6” (11.7 cm × 11.7 cm)
• Max sample thickness: ≤ 120 mil (≈ 3 mm)
• Standard test area: 38.48 cm2
• Test gases: O2, N2, CO2, etc. (not supplied)
• Dimensions (HxWxD): 23.6” × 19.2” × 25.9” (60 cm × 49 cm × 66 cm)
• Power supply: 120 VAC ±10% 60 Hz / 220 VAC ±10% 50 Hz
• Net weight: ≈ 100 kg (220 lb)

Configuration & options

• Standard configuration: Main instrument, vacuum pump, 12" tablet, sampler, vacuum grease, Ø6 mm PU tube.
• Optional items: Air compressor, CFR21 Part11, GMP computer system compliance, DataShield™.

Important note

The gas supply (compressor/pressure) is to be provided by the customer: gas port Ø 6 mm, required pressure ≥ 79.7 PSI / 550 kPa. Tests with hazardous gases require specific customization and safety measures.
