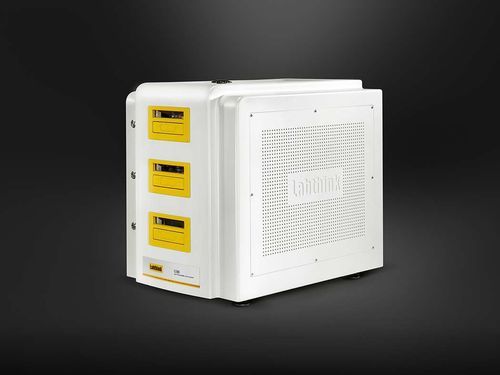

Pressure tester C130H

controltemperaturediffusion

The C130H Gas Permeability Tester is a differential-pressure instrument for precise measurement of gas transmission rate, solubility, diffusion and permeability coefficients of plastic films, composite films, sheets and metal foils across controlled temperatures. The system is designed for R&D, quality control and standardized testing in industrial laboratory environments.

Product Features

• Mechanical and operational design
  • Pop-up drawer test cells for safe and efficient specimen handling
  • Automatic specimen clamping with uniform force to ensure repeatability
  • Imported core components for long-term stability
  • Intelligent test mode with one-button start and automatic stop (preset test temperature required)
  • Research mode allowing flexible parameter configuration for advanced analysis
• Accuracy and efficiency
  • High-precision vacuum sensor for ultra-high barrier measurements (0.01–0.09 cm3/m2·24h·0.1MPa)
  • Imported pneumatic control and vacuum pump achieving vacuum down to 0.2 Pa with automatic control
  • Typical test time: <4 hours for low/medium-barrier materials, <8 hours for high-barrier materials (including evacuation)
  • Three independent test cells providing separate results and interchangeable specimens
• Temperature and pressure control
  • 360° circulation constant-temperature control with fluctuation below ±0.05°C
  • Pressure compensation technique to maintain differential pressure stability (change < 0.2 KPa)
  • Test pressure adjustable from 10 KPa to 210 KPa
• Functions and customization
  • Supports single and mixed gases; testing of flammable, explosive or toxic gases available with required customization and safety measures
  • Optional automatic gas humidity control (humidifier by customization)
  • Data fitting for extrapolation at extreme temperatures and reference film port for fast calibration
  • Calibration port for temperature and pressure verification; conforms to differential-pressure method standards
• Integrated computer control
  • Embedded instrument/software architecture reduces external computer dependencies and improves data security
  • Windows interface; supports mouse, keyboard and monitor control
  • Four USB ports and dual Ethernet ports for data transfer; optional GMP computer and DataShield for secure data management

Test Principle
The preconditioned specimen is mounted to form a sealed barrier between a higher-pressure chamber and a lower-pressure chamber. The lower chamber is evacuated, the cell is evacuated, and test gas is introduced into the higher-pressure chamber to create a constant pressure difference. Gas permeates through the specimen into the lower chamber and monitoring pressure changes yields permeability, diffusion and solubility data.

Test Standards

• ISO 2556
• ISO 15105-1
• GB/T 1038-2000
• ASTM D1434
• JIS K7126-1
• YBB 00082003

Applications

• Films: plastic films, composite films, paper-plastic laminates, coextruded films, aluminized films, aluminum foils and foil laminates
• Sheet materials: engineering plastics, rubber and construction materials (e.g., PP, PVC, PVDC)
• Gases: O2, CO2, N2, air, He and others; hazardous gases testable with customization and safety provisions
• Biodegradable films, aerospace materials (e.g., helium permeability), paper and board, coated films, glass-fibre textiles, cosmetic tubes and rubber sheets

Configurations

• Standard: instrument, monitor, keyboard, mouse, round sample cutter, vacuum grease, fast quantitative filter paper, vacuum pump, Φ6 mm PU tubing (3 m)
• Optional: GMP computer system, DataShield, air compressor

Notes

• Instrument gas supply uses Φ6 mm PU tubing; customer must provide gas supply.
• Certain functions (humidification, testing of dangerous gases) require customization and safety measures.

Technical Specifications

• Test range (film): 0.01 ~ 50,000 cm3/m2·24h·0.1MPa
• Resolution (film): 0.001 cm3/m2·24h·0.1MPa
• Temperature range: 10°C ~ 50°C (room temperature 23°C)
• Temperature resolution: 0.01°C; fluctuation: ±0.05°C; accuracy: ±0.3°C (calibration port)
• Vacuum resolution: 0.01 Pa; vacuum accuracy (display): ±0.2% (1%~100% of sensor range)
• Test chamber vacuum: < 10 Pa
• Number of specimens: 3 independent test cells (customizable)
• Specimen size: Φ97 mm; test area: 38.48 cm2
• Test gases: O2, N2, CO2 (gas supply not included); gas humidification optional
• Test pressure: 10 KPa ~ 210 KPa
• Gas supply pressure: 0.5 MPa ~ 0.6 MPa
• Port size: Φ6 mm PU tubing
• Instrument dimensions: 710 mm × 350 mm × 630 mm
• Power supply: 220 VAC ±10% 50 Hz / 120 VAC ±10% 60 Hz
• Net weight: 100 kg
